2013 Toyota Land CruiserFACTORY OEM SERVICE PROCEDURE

Crawl Switch: Installation: Installation

  1. INSTALL CRAWL SWITCH

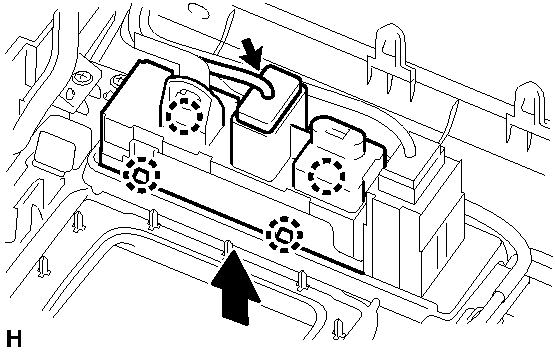

    1. Attach the 4 claws to install the suspension control switch (CRAWL switch).
      Fig 1: Attach The 4 Claws
      GTY378214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 connectors.
  2. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 44
  3. INSTALL CONSOLE CUP HOLDER BOX SUB-ASSEMBLY  . Refer to REMOVAL - Step 22
  4. INSTALL REAR UPPER CONSOLE PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 46
  5. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 47
  6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY  . Refer to INSTALLATION - Step 48
  7. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY RH  . Refer to INSTALLATION - Step 49
  8. INSTALL NO. 1 INSTRUMENT PANEL FINISH CUSHION  . Refer to INSTALLATION - Step 50
  9. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH  . Refer to INSTALLATION - Step 51
  10. INSTALL NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION  . Refer to INSTALLATION - Step 52
  11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
