2013 Toyota FJ Cruiser 4WD, Part Time T/Case ControlFACTORY OEM SERVICE PROCEDURE
Air Fuel Ratio Sensor: Removal: Removal
- REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH
Refer to REMOVAL
- REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH
Refer to REMOVAL
- REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)

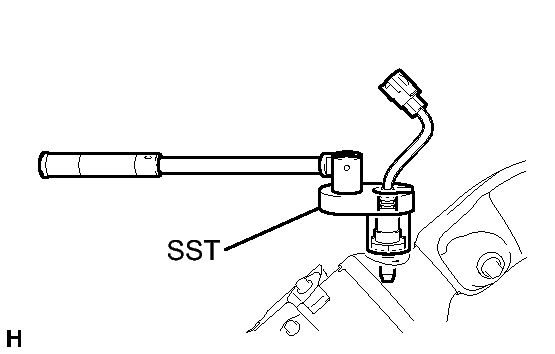

- Using SST, remove the air fuel ratio sensor from the exhaust manifold sub-assembly RH.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- SST: 09224-00010
NOTE:Do not use an air fuel ratio sensor that has been dropped or subjected to a strong impact.
- Using SST, remove the air fuel ratio sensor from the exhaust manifold sub-assembly RH.
- REMOVE AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)

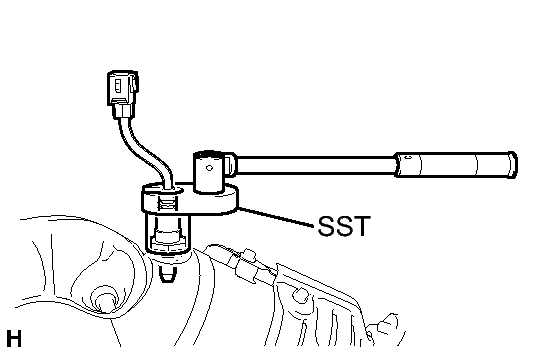

- Using SST, remove the air fuel ratio sensor from the exhaust manifold sub-assembly LH.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- SST: 09224-00010
NOTE:Do not use an air fuel ratio sensor that has been dropped or subjected to a strong impact.
- Using SST, remove the air fuel ratio sensor from the exhaust manifold sub-assembly LH.
