INTEGRATION RELAY (for Sedan): Inspection: Inspection
- INSPECT INTEGRATION NO. 1 RELAY
- Inspect the EFI fuse.
- Inspect the EFI relay.
- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION

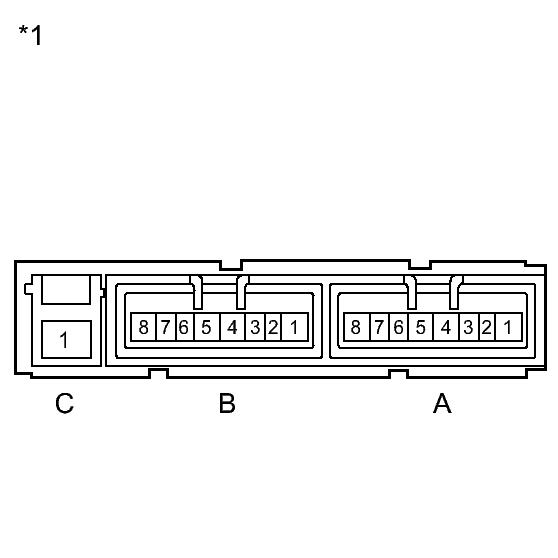

*1 Component without harness connected
(Integration Relay)Standard Resistance
Tester Connection Condition Specified Condition C1 - A4 Battery voltage not applied 10 kΩ or higher Battery voltage applied to terminals A2 and A3 Below 1 Ω C1 - A1 Always Below 1 Ω NOTE:While using the battery for the inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
If the result is not as specified, replace the integration relay.
- Measure the resistance according to the value(s) in the table below.
- Inspect the FAN NO. 1 relay.
- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION

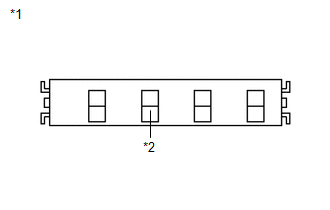

*1 Component without harness connected
(Integration Relay)Standard Resistance
Tester Connection Condition Resistance B5 - B8 Battery voltage not applied 10 kΩ or higher Battery voltage applied to terminals B6 and B7 Below 1 Ω NOTE:While using the battery for the inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
If the result is not as specified, replace the integration relay.

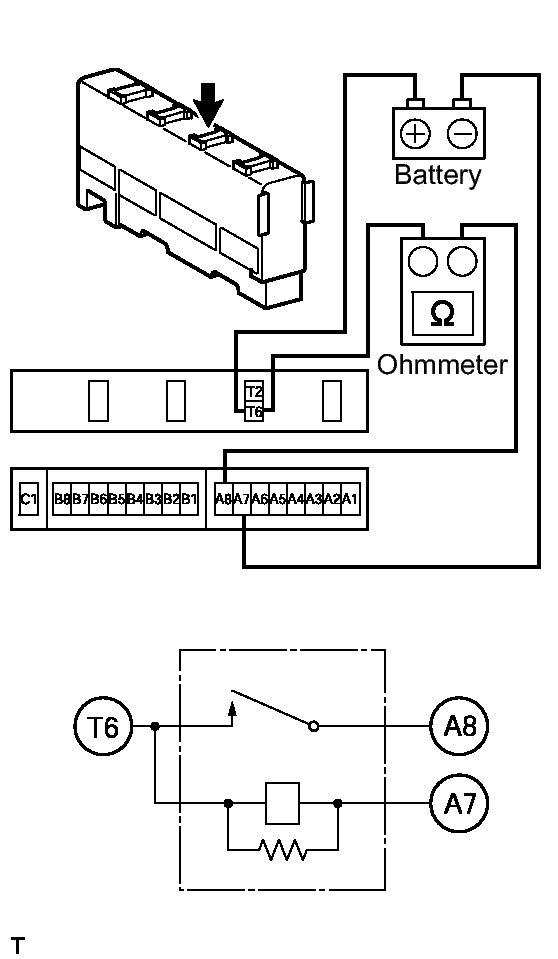

- Measure the resistance according to the value(s) in the table below.
- Inspect the AM2 fuse.
- Inspect the IG2 relay.
- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION

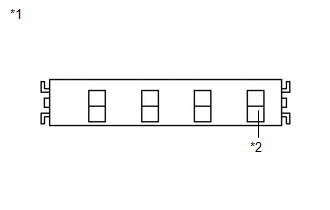

*1 Component without harness connected
(Integration Relay)Standard Resistance
Tester Connection Condition Resistance C1 - B4 Battery voltage not applied 10 kΩ or higher Battery voltage applied to terminals B2 and B3 Below 1 Ω C1 - B1 Always Below 1 Ω If the result is not as specified, replace the integration relay.
- Measure the resistance according to the value(s) in the table below.
- Inspect the horn relay.
