2012 Toyota Venza FWD V6-3.5L (2GR-FE)FACTORY OEM SERVICE PROCEDURE
Crankshaft Main Bearing
CRANKSHAFT
The crankshaft bearing cap bolts are tightened in 2 progressive steps.
Step 1

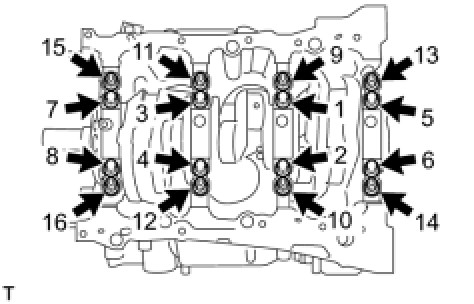

Install and uniformly tighten the 16 crankshaft bearing cap bolts in several steps and in the sequence shown in the illustration.
Torque 61 Nm (622 kgf-cm, 45 ft-lbf)
If any of the crankshaft bearing cap bolts does not meet the torque specified, replace it.
Step 2

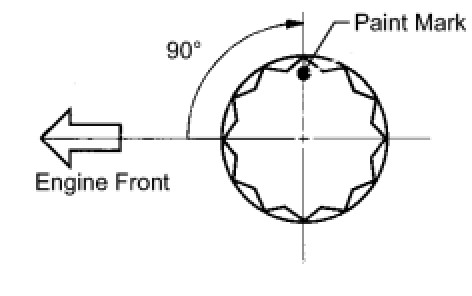

Mark the front of the bearing cap bolts with paint.
Retighten the bearing cap bolts 90° in the sequence shown in the illustration.
Check that the painted mark is now at a 90° angle to the front of the engine.

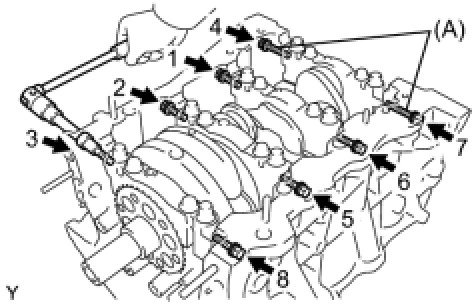

Install 8 new seal washers and uniformly tighten the 8 crankshaft bearing cap bolts in several steps and in the sequence shown in the illustration.
Torque 52 Nm (525 kgf-cm, 38 ft-lbf)

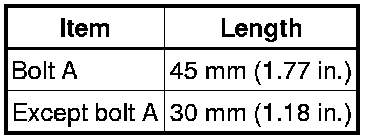

Bolt Length
Check that the crankshaft turns smoothly.

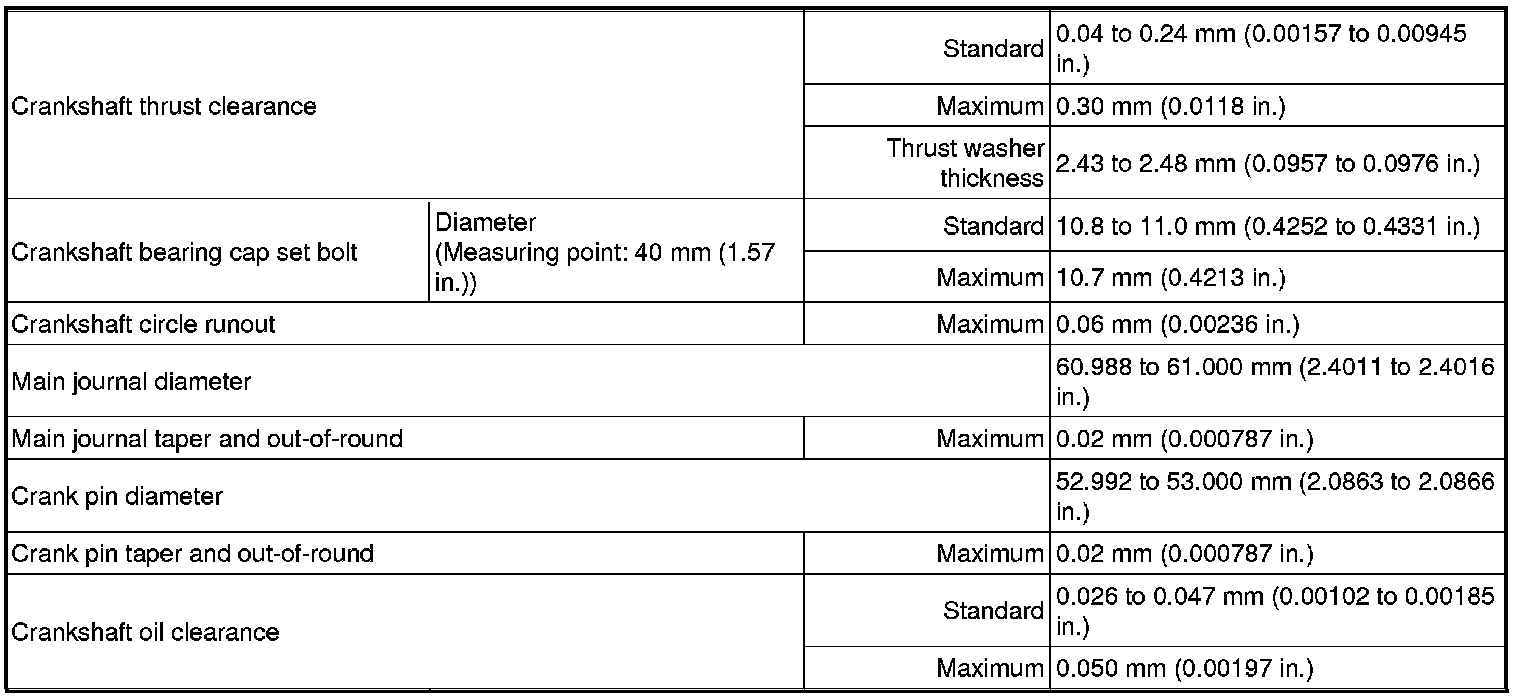

MAIN BEARING CLEARANCE STANDARD AND LIMIT

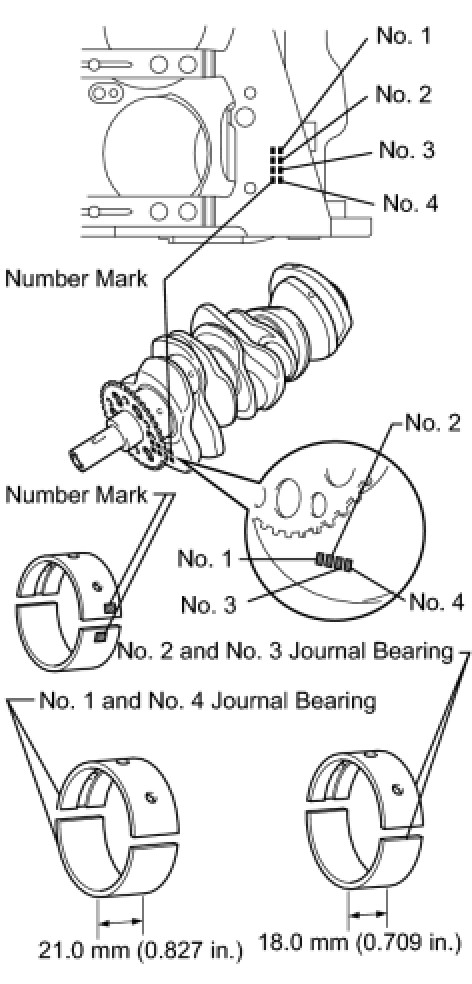

Main Bearing Size Codes
There are 5 sizes of standard bearings, marked "1", "2", "3", "4" and "5" accordingly.
Journal Bearings
EXAMPLE: Cylinder block "11" + Crankshaft "06" = Total number 17 (Use bearing "3")

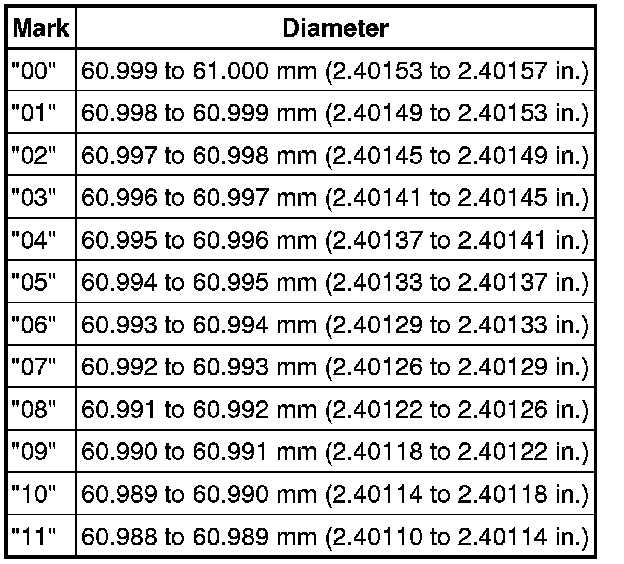

Crankshaft Main Journal Diameter

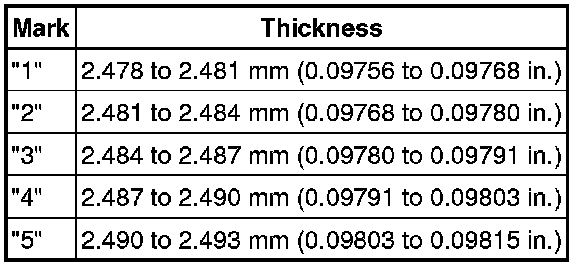

Standard Upper Bearing Center Wall Thickness (No. 1 and No. 4 journal)
Standard Lower Bearing Center Wall Thickness (No. 1 and No. 4 journal)

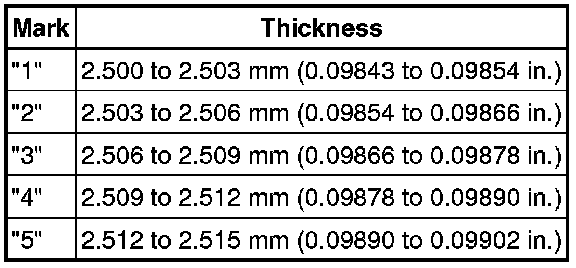

Standard Upper Bearing Center Wall Thickness (No. 2 and No. 3 journal)
Standard Lower Bearing Center Wall Thickness (No. 2 and No. 3 journal)
The crankshaft bearing cap bolts are tightened in 2 progressive steps.
Step 1
Install and uniformly tighten the 16 crankshaft bearing cap bolts in several steps and in the sequence shown in the illustration.
Torque 61 Nm (622 kgf-cm, 45 ft-lbf)
If any of the crankshaft bearing cap bolts does not meet the torque specified, replace it.
Step 2
Mark the front of the bearing cap bolts with paint.
Retighten the bearing cap bolts 90° in the sequence shown in the illustration.
Check that the painted mark is now at a 90° angle to the front of the engine.
Install 8 new seal washers and uniformly tighten the 8 crankshaft bearing cap bolts in several steps and in the sequence shown in the illustration.
Torque 52 Nm (525 kgf-cm, 38 ft-lbf)
Bolt Length
Check that the crankshaft turns smoothly.
MAIN BEARING CLEARANCE STANDARD AND LIMIT
Main Bearing Size Codes
There are 5 sizes of standard bearings, marked "1", "2", "3", "4" and "5" accordingly.
Journal Bearings
EXAMPLE: Cylinder block "11" + Crankshaft "06" = Total number 17 (Use bearing "3")
Crankshaft Main Journal Diameter
Standard Upper Bearing Center Wall Thickness (No. 1 and No. 4 journal)
Standard Lower Bearing Center Wall Thickness (No. 1 and No. 4 journal)
Standard Upper Bearing Center Wall Thickness (No. 2 and No. 3 journal)
Standard Lower Bearing Center Wall Thickness (No. 2 and No. 3 journal)
