2012 Toyota Venza FWD V6-3.5L (2GR-FE)FACTORY OEM SERVICE PROCEDURE
Connecting Rod, Engine
PISTON SUB-ASSEMBLY WITH CONNECTING ROD
The connecting rod cap bolts are tightened in 2 progressive steps.
Step 1
Install and alternately tighten the bolts of the connecting rod cap in several steps.
Torque 25 Nm (255 kgf-cm, 18 ft-lbf)
Step 2
Mark the front of each connecting rod cap bolt with paint.
Retighten the cap bolts 90° as shown in the illustration.
Check the painted mark is now at a 90° angle to the front.

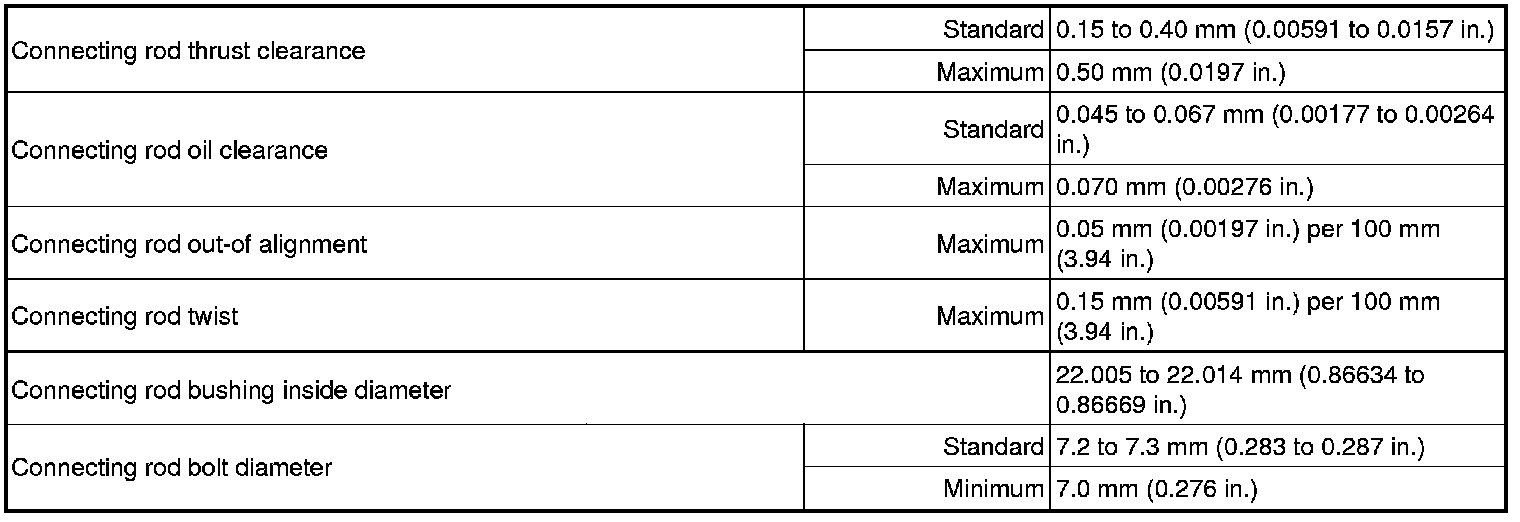

Connecting Rod Side Clearance, Out-of-Round and Diameter
Connecting Rod Diameter:
Connecting Rod Bearing Center Wall Thickness:
The connecting rod cap bolts are tightened in 2 progressive steps.
Step 1
Install and alternately tighten the bolts of the connecting rod cap in several steps.
Torque 25 Nm (255 kgf-cm, 18 ft-lbf)
Step 2
Mark the front of each connecting rod cap bolt with paint.
Retighten the cap bolts 90° as shown in the illustration.
Check the painted mark is now at a 90° angle to the front.
Connecting Rod Side Clearance, Out-of-Round and Diameter
Connecting Rod Diameter:
Connecting Rod Bearing Center Wall Thickness:
