2012 Toyota Venza FWD V6-3.5L (2GR-FE)FACTORY OEM SERVICE PROCEDURE
Installation
POWER DISTRIBUTION: MAIN BODY ECU: INSTALLATION
1. INSTALL MAIN BODY ECU (DRIVER SIDE JUNCTION BLOCK ASSEMBLY)
(a) Install the 5 relays.
(b) Connect the 4 connectors.

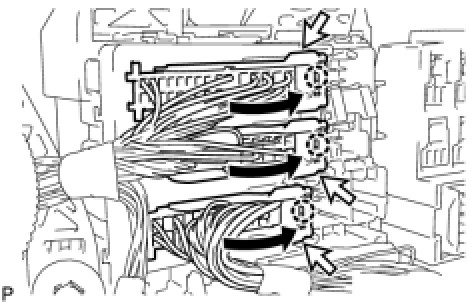

(c) Connect the connector [A] as shown in the illustration.
NOTICE:
Be sure to engage each connector securely.
(d) Engage the 2 claws.
(e) Install the 3 nuts and install the main body ECU (driver side junction block assembly).
(f) Connect the 2 connectors.
NOTICE:
Be sure to engage the connector securely.
(g) Connect the connector [A] as shown in the illustration.
NOTICE:
Be sure to engage the connector securely.
(h) Connect the connector.
NOTICE:
Be sure to engage each connector securely.
(i) Connect the 3 connectors as shown in the illustration.
NOTICE:
Be sure to engage each connector securely.
(j) Engage the 2 claws to connect the connector [A] as shown in the illustration.
NOTICE:
Be sure to engage the connector securely.
(k) Connect the 3 connectors.
NOTICE:
Be sure to engage each connector securely.
(l) Connect the 4 connectors.
NOTICE:
Be sure to engage each connector securely.
2. INSTALL UPPER INSTRUMENT PANEL
HINT
Refer to the procedure from Install Upper Instrument Panel Sub-assembly Installation.
