Smart Key System (for Start Function)

THEFT DETERRENT / KEYLESS ENTRY: SMART KEY SYSTEM (for Start Function): CUSTOMIZE PARAMETERS

1. CUSTOMIZING FUNCTION WITH TECHSTREAM

HINT
The items in the table below can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current setting before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / Smart Key / Utility / Customize Setting.

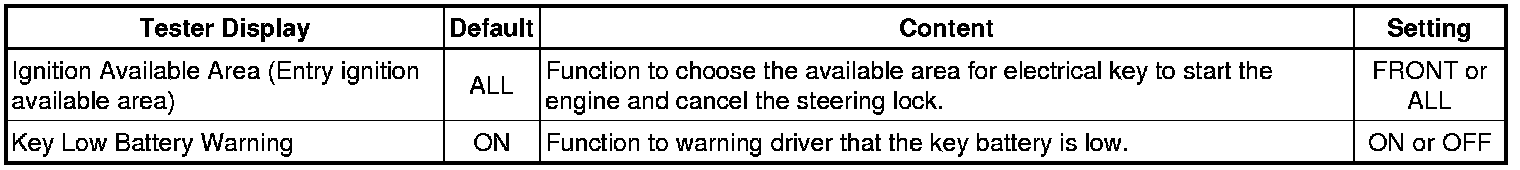

(e) Select the setting by referring to the table below.

Smart Key





2. CUSTOMIZING FUNCTION WITHOUT TECHSTREAM

Performing the following procedure disables the smart key system.

HINT
To start the engine while the smart key system is disabled, follow the procedure for when the key battery is low System Description.

(a) The operation procedures are as follows:

Precondition:

Engine switch off, driver side door closed and unlocked.

(1) Push the unlock switch of the key once.

(2) Open the driver door within 5 seconds.

(3) Push the unlock switch of the key twice within 5 seconds.

(4) Close and open the driver door twice within 30 seconds.

(Driver door: Close -> Open -> Close -> Open)

(5) Push the unlock switch of the key twice within 5 seconds.

(6) Close and open the driver door within 30 seconds.

(Driver door: Close -> Open)

(7) Close the driver door within 5 seconds.

When electrical key cancel is activated, the wireless door lock buzzer sounds twice.

To return to the original condition, perform the procedures again. When the original condition is returned, the wireless door lock buzzer sounds once.
