Active Control Engine Mount: Removal: Removal
- REMOVE RADIATOR ASSEMBLY AND FAN ASSEMBLY WITH MOTOR
Refer to REMOVAL
- REMOVE TRANSVERSE ENGINE MOUNTING BRACKET
HINT:
Securely support the automatic transaxle using a jack.

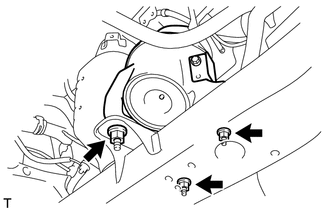

- Remove the 3 bolts, nut and the transverse engine mounting bracket.
- REMOVE FRONT ENGINE MOUNTING INSULATOR ASSEMBLY

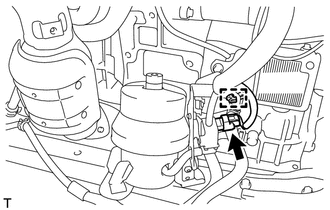

- Disconnect the duty vacuum switching valve connector.
- Disengage the wire harness clamp.

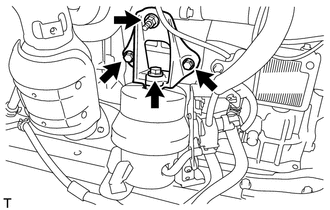

- Remove the 3 nuts and the front engine mounting insulator assembly.
