2012 Toyota Prius VFACTORY OEM SERVICE PROCEDURE
Pre-Collision Brake Cancel Switch: Inspection: Inspection
- INSPECT PRE-COLLISION BRAKE CANCEL SWITCH ASSEMBLYΒ
- Measure the resistance according to the value(s) in the table below.
Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
Standard Resistance

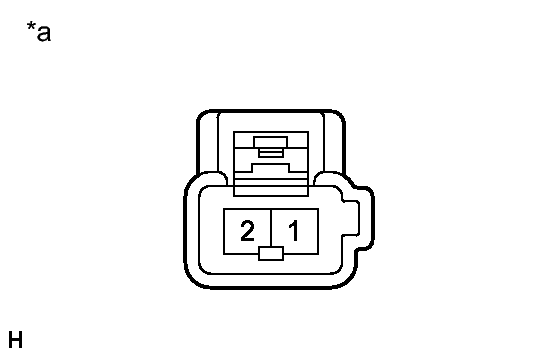

Tester Connection Switch Condition Specified Condition 1 - 2 Pressed Below 1 Ξ© Not pressed 10 kΞ© or higher TEXT IN ILLUSTRATION*a Component without harness connected
(Pre-collision Brake Cancel Switch Assembly)
- Measure the resistance according to the value(s) in the table below.
