2012 Toyota Prius VFACTORY OEM SERVICE PROCEDURE
Crankshaft Position Sensor: Inspection: Inspection
- INSPECT CRANK POSITION SENSOR
- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

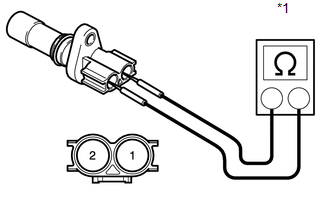

TEXT IN ILLUSTRATION*1 Ohmmeter Standard Resistance
Tester Connection Condition Specified Condition 1 - 2 -10 to 50°C (14 to 122°F) 1630 to 2740 Ω 50 to 100°C (122 to 212°F) 2065 to 3225 Ω
- Measure the resistance according to the value(s) in the table below.
