2012 Toyota Prius TwoFACTORY OEM SERVICE PROCEDURE

Steering Pad Switch: Installation: Installation

INSTALL STEERING PAD SWITCH ASSEMBLY
1. Engage the 2 claws to install the steering pad switch assembly (RH side) to the steering wheel sub-assembly.

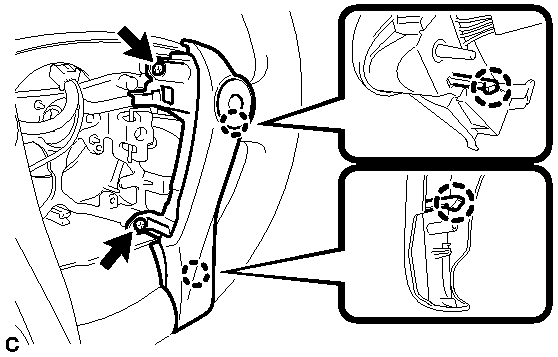

  Fig 1: Identifying Steering Pad Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 screws.
  Torque: 2.4 N*m (25 kgf*cm, 21 in.*lbf)
3. Engage the 2 claws to install the steering pad switch assembly (LH side) to the steering wheel sub-assembly.

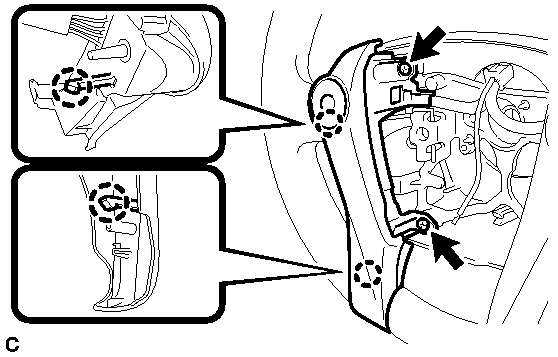

  Fig 2: Identifying Steering Pad Switch Assembly Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the 2 screws.
  Torque: 2.4 N*m (25 kgf*cm, 21 in.*lbf)
INSTALL STEERING PAD
HINT:

Refer to the instructions for Installation of the steering pad. Refer to INSTALLATION .
