2012 Toyota Prius TwoFACTORY OEM SERVICE PROCEDURE

Hard Disk Drive: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. PRECAUTION
    NOTE:

    When installing the hard disk drive, eliminate static electricity by touching the vehicle body to prevent components from being damaged.

  2. INSTALL HARD DISK DRIVE
    1. Insert the hard disk drive in the direction shown by the arrow in the illustration to install it.

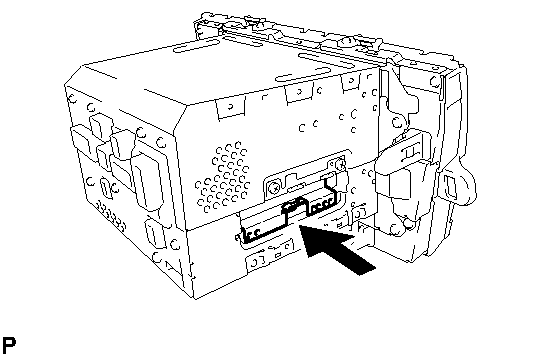

      Fig 1: Installing Hard Disk Drive
      GTY331679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 guides to temporarily install the cover.
    3. Install the cover with the 2 screws.
  3. INSTALL NO. 2 RADIO BRACKET  See step  4
  4. INSTALL NAVIGATION RECEIVER WITH BRACKET  See step  6
  5. INSTALL UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 27
  6. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH  . Refer to INSTALLATION - Step 28
  7. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 30
  8. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY  . Refer to INSTALLATION - Step 31
  9. CONNECT CABLE TO AUXILIARY BATTERY NEGATIVE TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

  10. INSTALL REAR NO. 3 FLOOR BOARD UPPER PLATE  . Refer to INSTALLATION - Step 3
  11. INSTALL DECK FLOOR BOX RH  . Refer to INSTALLATION - Step 4
  12. INSTALL REAR NO. 3 FLOOR BOARD  . Refer to INSTALLATION - Step 55
  13. INSPECT HARD DISK DRIVE

    Refer to OPERATION CHECK
