2012 Toyota Prius TwoFACTORY OEM SERVICE PROCEDURE

Front Brake: Reassembly: Reassembly

WARNING: This page is about a different variant/trim than selected.
  1. TEMPORARILY TIGHTEN FRONT DISC BRAKE BLEEDER PLUG

    HINT:

    Fully tighten the front disc brake bleeder plug after bleeding any air left in the system.

  2. INSTALL FRONT DISC BRAKE BLEEDER PLUG CAP
  3. INSTALL PISTON SEAL
    1. Apply a light layer of lithium soap base glycol grease to the entire circumference of a new piston seal.

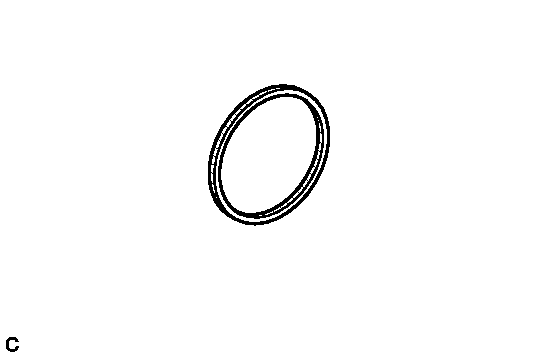

      Fig 1: Identifying Piston Seal
      GTY263991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Lithium Soap Base Glycol Grease
    2. Install the piston seal to the disc brake cylinder assembly.
      NOTE:

      Securely install the piston seal into the groove of the disc brake cylinder.

  4. INSTALL FRONT DISC BRAKE PISTON
    1. Apply a light layer of lithium soap base glycol grease to the entire circumference of a new cylinder boot.

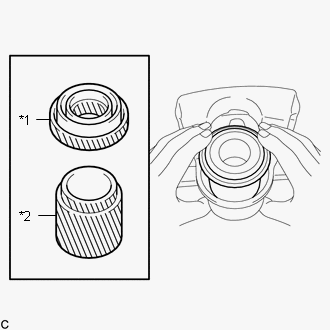

      Fig 2: Install Front Disc Brake Piston
      GTY324138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Cylinder Boot
      *2 Front Disc Brake Piston
      Lithium Soap Base Glycol Grease
    2. Install the cylinder boot to the front disc brake piston.
    3. Apply a light layer of lithium soap base glycol grease to the contact surfaces of the front disc brake piston, and install it to the disc brake cylinder assembly.
      NOTE:

      Do not install the piston forcibly in the disc brake cylinder assembly.

  5. INSTALL CYLINDER BOOT
    1. Install the cylinder boot to the disc brake cylinder assembly.

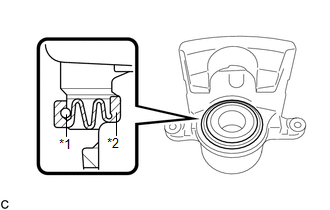

      Fig 3: Identifying Cylinder Boot & Set Ring
      GTY213895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Set Ring
      *2 Cylinder Boot
      NOTE:

      Securely install the cylinder boot to the groove of the disc brake cylinder assembly and front disc brake piston.

    2. Using a screwdriver with its tip wrapped with vinyl tape, install a new set ring.

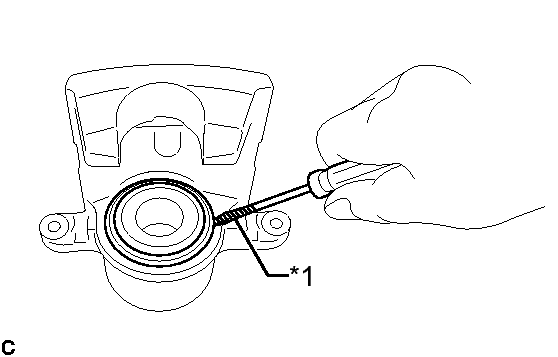

      Fig 4: Removing Cylinder Boot
      GTY217353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Vinyl Tape
      NOTE:
      • Securely install the set ring to the outer groove of the cylinder boot.
      • Do not damage the cylinder boot.
