Integration Relay: Inspection: Inspection
- INSPECT NO. 2 INTEGRATION RELAY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

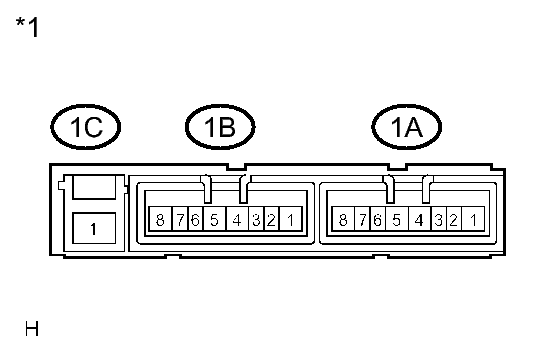

TEXT IN ILLUSTRATION*1 No. 2 Integration Relay - - - IG2 RELAY:
- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION

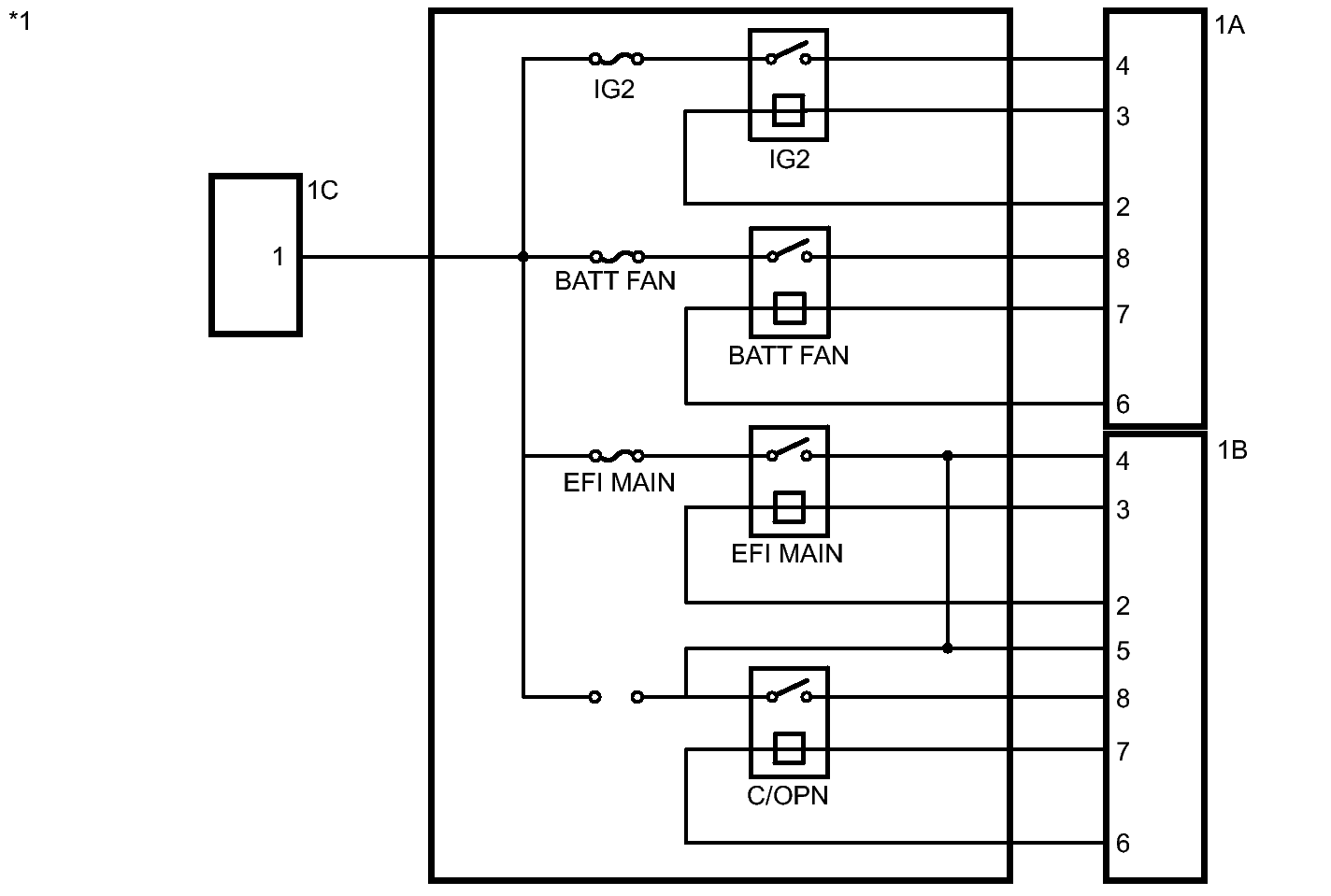

*1 No. 2 Integration Relay Standard Resistance
Tester Connection Condition Specified Condition No. 2 Integration relay (1C-1) - No. 2 Integration relay (1A-4) Battery voltage is not applied between terminals 1A-3 and 1A-2 10 kΩ or higher No. 2 Integration relay (1C-1) - No. 2 Integration relay (1A-4) Battery voltage is applied between terminals 1A-3 and 1A-2 Below 1 Ω If the resistance is not as specified, replace the No. 2 integration relay.
- Measure the resistance according to the value(s) in the table below.
- EFI MAIN RELAY:
- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION
*1 No. 2 Integration Relay Standard Resistance
Tester Connection Condition Specified Condition No. 2 Integration relay (1C-1) - Integration relay (1B-4) Battery voltage is not applied between terminals 1B-2 and 1B-3 10 kΩ or higher No. 2 Integration relay (1C-1) - Integration relay (1B-4) Battery voltage is applied between terminals 1B-2 and 1B-3 Below 1 Ω If the resistance is not as specified, replace the No. 2 integration relay.
- Measure the resistance according to the value(s) in the table below.
- C/OPN RELAY:
- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION
*1 No. 2 Integration Relay Standard Resistance
Tester Connection Condition Specified Condition No. 2 Integration relay (1B-5) - No. 2 Integration relay (1B-8) Battery voltage is not applied between terminals 1B-6 and 1B-7 10 kΩ or higher No. 2 Integration relay (1B-5) - No. 2 Integration relay (1B-8) Battery voltage is applied between terminals 1B-6 and 1B-7 Below 1 Ω If the resistance is not as specified, replace the No. 2 integration relay.
- Measure the resistance according to the value(s) in the table below.
- BATT FAN RELAY:
- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION
*1 No. 2 Integration Relay Standard Resistance
Tester Connection Condition Specified Condition No. 2 Integration relay (1C-1) - No. 2 Integration relay (1A-8) Battery voltage is not applied between terminals 1A-7 and 1A-6 10 kΩ or higher No. 2 Integration relay (1C-1) - No. 2 Integration relay (1A-8) Battery voltage is applied between terminals 1A-7 and 1A-6 Below 1 Ω If the resistance is not as specified, replace the No. 2 integration relay.
- Measure the resistance according to the value(s) in the table below.
- IG2 RELAY:
