Camshaft Oil Control Valve: Inspection: Inspection
- INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

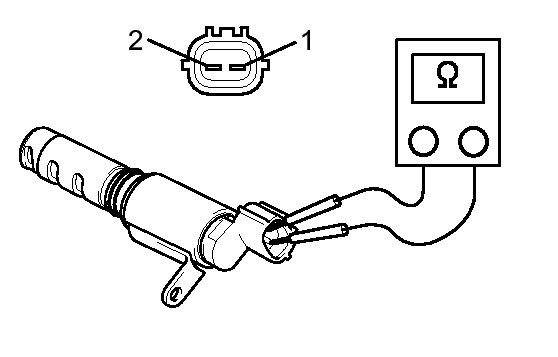

- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard Resistance
Tester Connection Condition Specified Condition 1 - 2 20°C (68°F) 6.9 to 7.9 Ω If the result is not as specified, replace the oil control valve assembly.
- Check the operation.

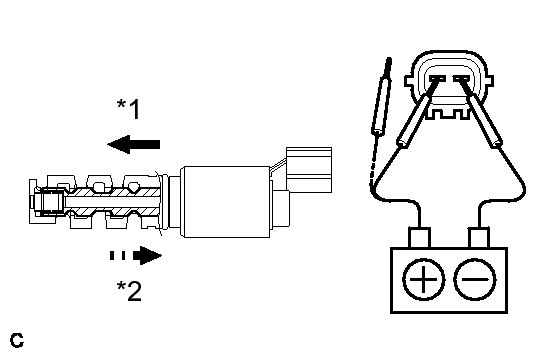

- Connect a positive (+) battery lead to terminal 1 and a negative (-) lead to terminal 2, and check the movement of the valve.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEXT IN ILLUSTRATION*1 When Applied *2 When Cut Off NOTE:Confirm that the valve moves freely and does not stick in any position.
If necessary, replace the camshaft timing oil control valve assembly.
HINT:
Accumulation of foreign matter can cause minor pressure leaks. Minor pressure leaks will cause the camshaft to advance or retard, and this will cause a DTC to be set.
- Connect a positive (+) battery lead to terminal 1 and a negative (-) lead to terminal 2, and check the movement of the valve.
- Measure the resistance according to the value(s) in the table below.
