2012 Toyota Prius TwoFACTORY OEM SERVICE PROCEDURE

Window Defogger Wire: Repair: Repair

  1. REPAIR REAR WINDOW DEFOGGER WIRE (BACK DOOR GLASS)Β

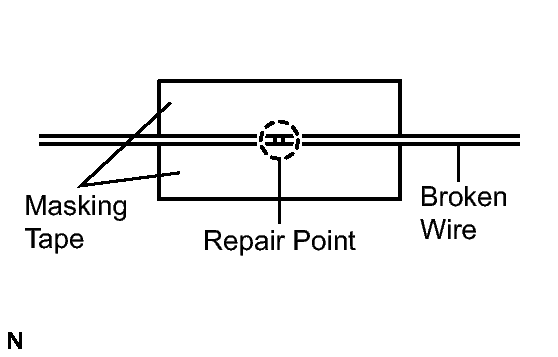

    Fig 1: Cleaning Broken Wire Tips With Grease
    GTY219786Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
    1. Clean the broken wire tips with a grease, wax and silicone remover.
    2. Place masking tape along both sides of the wire.
    3. Thoroughly mix the repair agent (Dupont paste No. 4817 or equivalent).

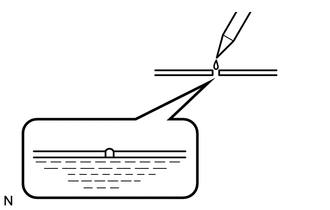

      Fig 2: Applying Small Amount Of Agent To Wire
      GTY102931Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a fine tip brush, apply a small amount of the agent to the wire.
    5. After a few minutes, remove the masking tape.
      NOTE:

      Do not use the rear window defogger for at least 24 hours after performing the repair.
