Mass Air Flow Meter: Inspection: Inspection
- INSPECT MASS AIR FLOW METER

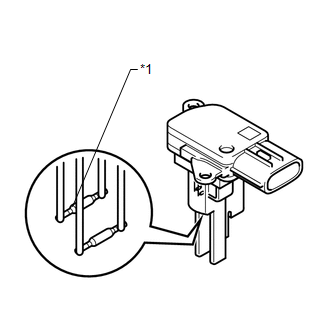

- Perform a visual check for any foreign matter on the platinum hot wire (heater) of the mass air flow meter shown in the illustration.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEXT IN ILLUSTRATION*1 Platinum Hot Wire (Heater) Result
There is no foreign matter.
If the result is not as specified, replace the mass air flow meter.

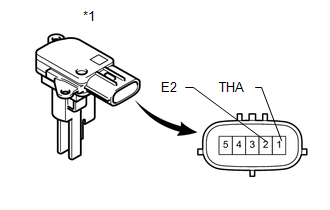

- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEXT IN ILLUSTRATION*1 Mass Air Flow Meter Standard Resistance
Tester Connection Condition Specified Condition 1 (THA) - 2 (E2) -20°C (-4°F) 13.6 to 18.4 kΩ 20°C (68°F) 2.21 to 2.69 kΩ 60°C (140°F) 0.49 to 0.67 kΩ
- Perform a visual check for any foreign matter on the platinum hot wire (heater) of the mass air flow meter shown in the illustration.
