2012 Toyota Prius TwoFACTORY OEM SERVICE PROCEDURE
Power Switch: Installation: Installation
- INSTALL POWER SWITCH

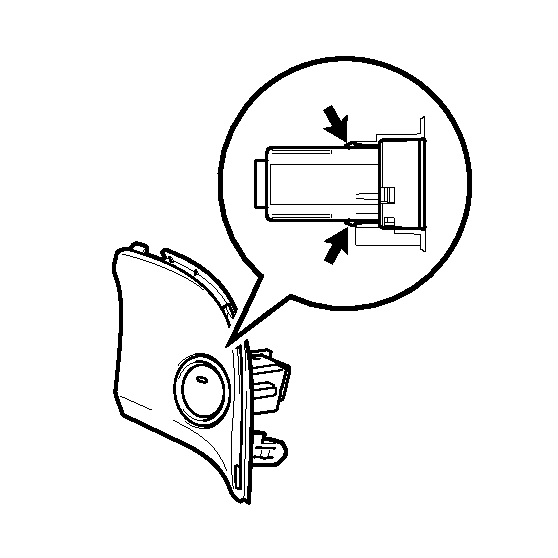

- Engage the 2 claws to install the power switch.
- INSTALL UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 27
- INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH . Refer to INSTALLATION - Step 28
- INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 30
- INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY . Refer to INSTALLATION - Step 31
- CONNECT CABLE TO AUXILIARY BATTERY NEGATIVE TERMINAL
- INSTALL REAR NO. 3 FLOOR BOARD . Refer to INSTALLATION - Step 58
- INSTALL REAR DECK FLOOR BOX . Refer to INSTALLATION - Step 59
- INSTALL REAR NO. 2 FLOOR BOARD (for Separate Type) . Refer to INSTALLATION - Step 60
