2012 Toyota Prius ThreeFACTORY OEM SERVICE PROCEDURE

Section 40 (Engine Control System (Plug-In) (Service Information)): ECM: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL ECM
    1. Install the ECM with the 2 bolts.

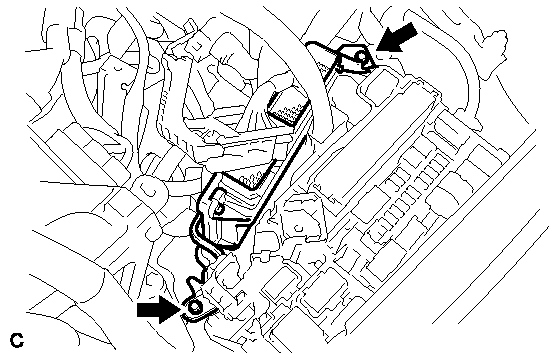

      Fig 1: Identifying ECM Brackets & Bolts
      GTY216016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

    2. Install the 3 wire harness clamps.

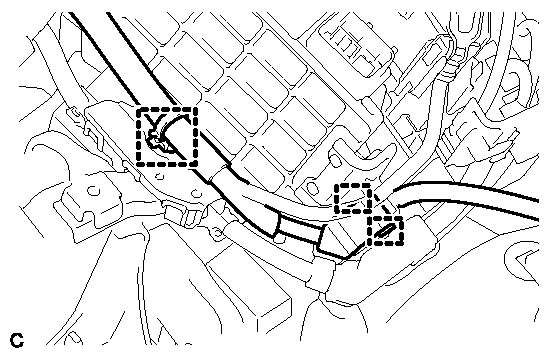

      Fig 2: Identifying Wire Harness Clamps
      GTY229016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the 2 ECM connectors.
      1. Connect the 2 ECM connectors and lower the 2 levers.

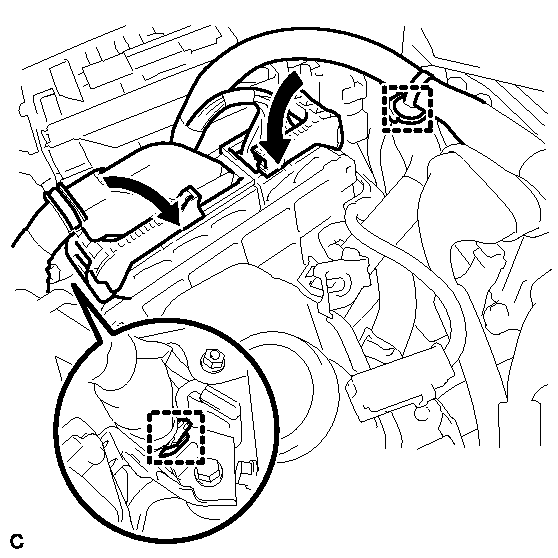

        Fig 3: Identifying ECM Connectors & Lower Levers
        GTY227210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
