2012 Toyota Prius ThreeFACTORY OEM SERVICE PROCEDURE
Camshaft Position Sensor: Removal: Removal
WARNING: This page is about a different variant/trim than selected.
HINT:
Although the part name refers to the No. 1 crank position sensors, this procedure is for the camshaft position sensors.
- REMOVE NO. 2 CYLINDER HEAD COVER . Refer to REMOVAL - Step 29

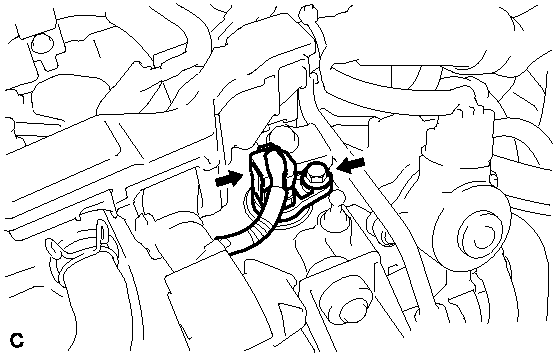

- REMOVE NO. 1 CRANK POSITION SENSOR
- Disconnect the No. 1 crank position sensor connector.
- Remove the bolt and No. 1 crank position sensor.
