Engine Coolant Temperature Sensor: Removal: Removal
2012 Toyota Prius ThreeSECTION Removal
- REMOVE EGR WITH COOLER PIPE SUB-ASSEMBLY
- Remove the EGR with cooler pipe sub-assembly. Refer to REMOVAL .
- REMOVE INVERTER RESERVE TANK ASSEMBLY See step 5

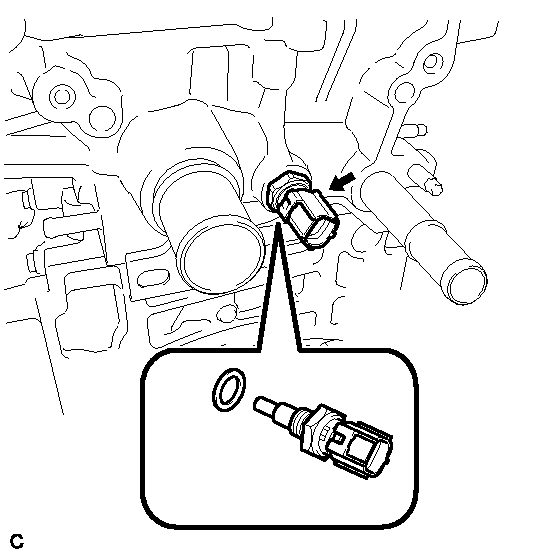

- REMOVE ENGINE COOLANT TEMPERATURE SENSOR
- Disconnect the engine coolant temperature sensor connector.
- Remove the engine coolant temperature sensor.
