System Description
- GENERAL
- Deceleration sensors used for the airbag system are installed on various parts on the vehicle and calculate the deceleration rate of each part during a collision.
- Depending on the situation, the airbag ECU assembly sends a deployment signal to each airbag and pretensioner based on the information from each sensor.
- DEPLOYMENT CONDITION
- FRONTAL COLLISION
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

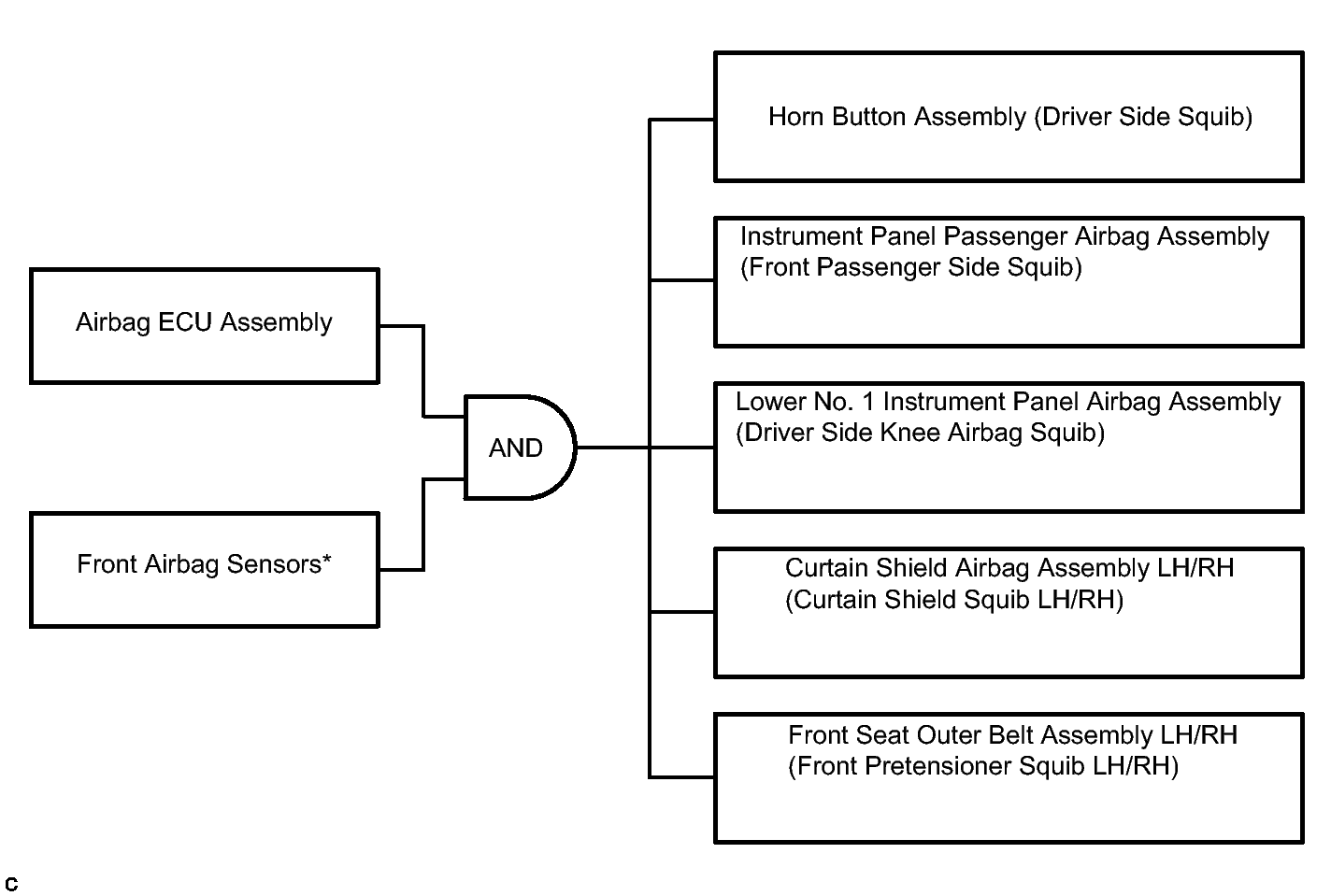

- Frontal collision signals are produced based on the information from the airbag ECU assembly and front airbag sensors.
HINT:
*: In case of a frontal collision, the SRS ignition signal may be output after receiving an ON signal from the deceleration sensor built in the airbag ECU assembly even without a signal from the front airbag sensors.
- Frontal collision signals are used to deploy the airbags and pretensioners in the illustration.
HINT:
The occupant classification system restricts the deployment of the instrument panel passenger airbag assembly and front seat outer belt assembly RH. Refer to FAIL-SAFE CHART .
- Frontal collision signals are produced based on the information from the airbag ECU assembly and front airbag sensors.
- SIDE COLLISION (Pattern 1)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

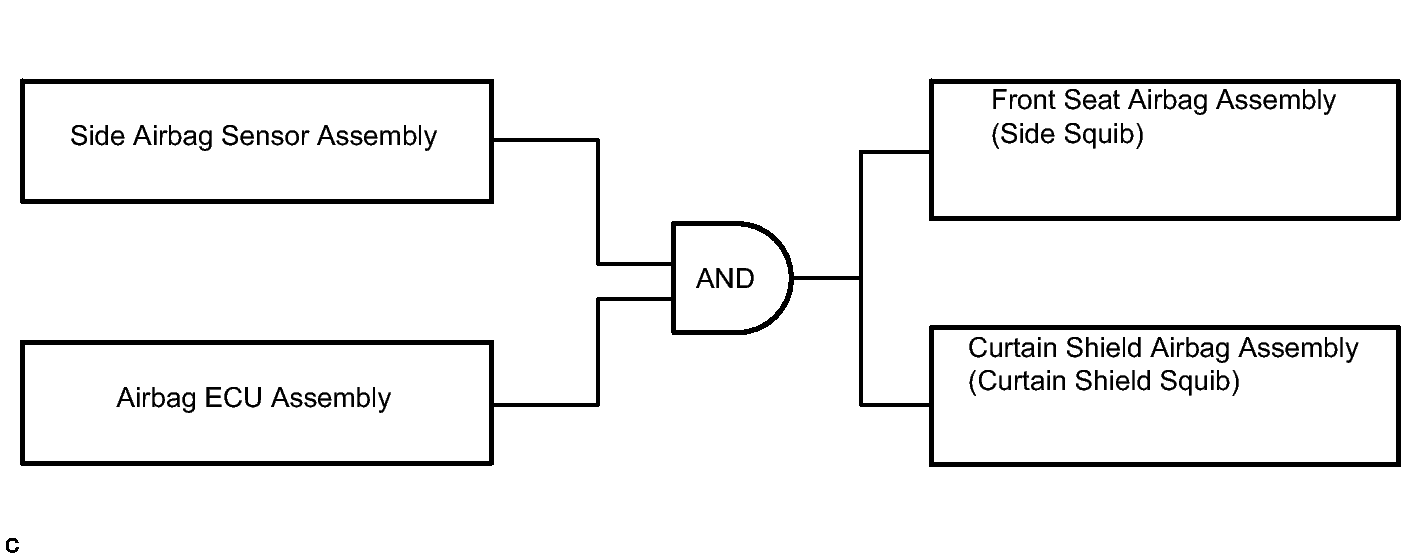

- Side collision (Pattern 1) signals are produced based on the information from the airbag ECU assembly and side airbag sensor assembly.
- Side collision (Pattern 1) signals are used to deploy the airbags in the illustration.
- SIDE COLLISION (Pattern 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

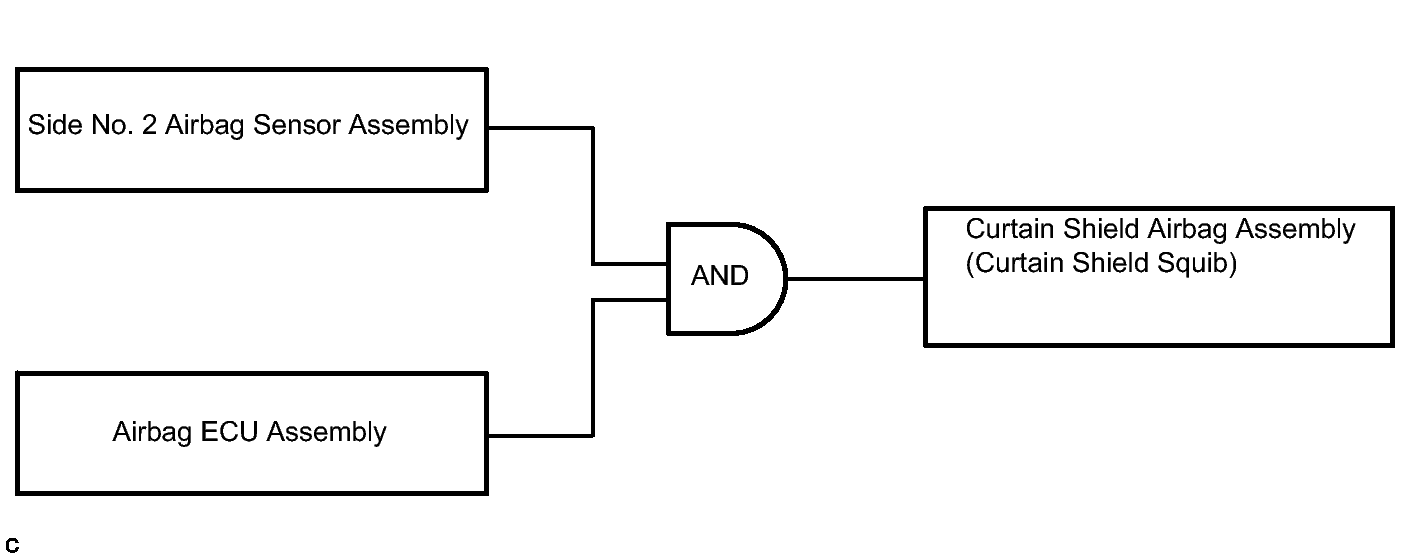

- Side collision (Pattern 2) signals are produced based on the information from the airbag ECU assembly and side No. 2 airbag sensor assembly.
- Side collision (Pattern 2) signals are used to deploy the airbag in the illustration.
