2012 Toyota Prius Plug-inFACTORY OEM SERVICE PROCEDURE
Cruise Control Main Switch: Installation: Installation
WARNING: This page is about a different variant/trim than selected.
- INSTALL CRUISE CONTROL MAIN SWITCH

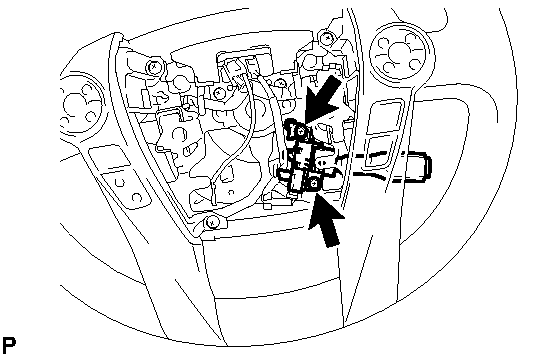

- Install the cruise control main switch with the 2 screws.

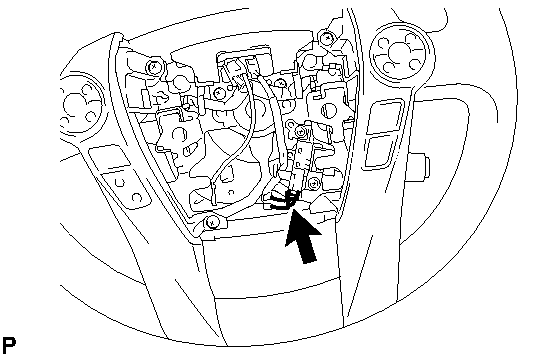

- Connect the connector.
- INSTALL STEERING PAD . Refer to INSTALLATION - Step 1
- INSTALL LOWER NO. 3 STEERING WHEEL COVER . Refer to INSTALLATION - Step 2
- INSTALL LOWER NO. 2 STEERING WHEEL COVER . Refer to INSTALLATION - Step 3
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
- INSTALL REAR NO. 3 FLOOR BOARD . Refer to INSTALLATION - Step 58
- INSTALL REAR DECK FLOOR BOX . Refer to INSTALLATION - Step 59
- INSTALL REAR NO. 2 FLOOR BOARD (for Separate Type) . Refer to INSTALLATION - Step 60
- INSPECT STEERING PAD . Refer to INSTALLATION - Step 8
- INSPECT SRS WARNING LIGHT
- Inspect SRS warning light. Refer to DIAGNOSIS SYSTEM .
