Ignition Coil And Spark Plug: Removal: Removal
- REMOVE WINDSHIELD WIPER MOTOR AND LINK
- Remove the windshield wiper motor and link. Refer to REMOVAL .
- REMOVE COWL BODY MOUNTING REINFORCEMENT LH . Refer to REMOVAL - Step 7
- REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY . Refer to REMOVAL - Step 8
- REMOVE NO. 2 CYLINDER HEAD COVER . Refer to REMOVAL - Step 29
- REMOVE IGNITION COIL ASSEMBLY

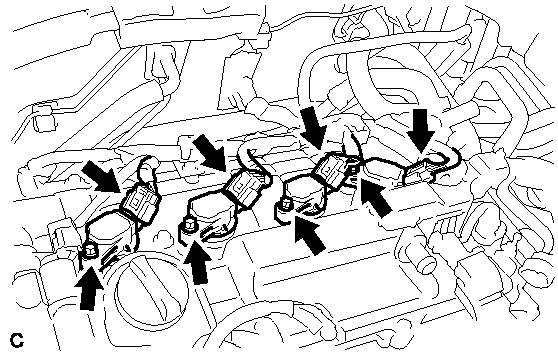

- Disconnect the 4 ignition coil connectors.
- Remove the 4 bolts and 4 ignition coils.NOTE:
When removing each ignition coil, do not damage the plug cap on the engine head cover opening or the upper edge of the spark plug tube.
- REMOVE SPARK PLUG

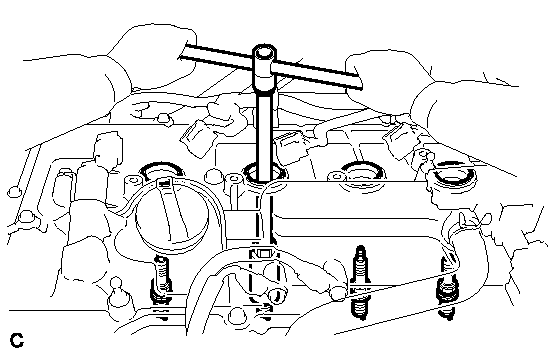

- Using a 14 mm spark plug wrench, remove the 4 spark plugs.
