2012 Toyota Prius FiveFACTORY OEM SERVICE PROCEDURE

Spiral Cable: Installation: Installation

INSTALL SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
NOTE:
- Do not replace the spiral cable with the battery connected and the power switch on (IG).
- Do not rotate the spiral cable with the battery connected and the power switch on (IG).
- Ensure that the steering wheel is installed and aligned straight when inspecting the steering sensor.
- Do not remove the steering sensor from the spiral cable.
1. Check that the power switch is off.
2. Check that the cable is disconnected from the negative (-) battery terminal.
3. Check that the front wheels are facing straight ahead.
4. Set the turn signal switch to the neutral position.
  NOTE:
  If it is not in the neutral position, the turn signal switch pin may snap.

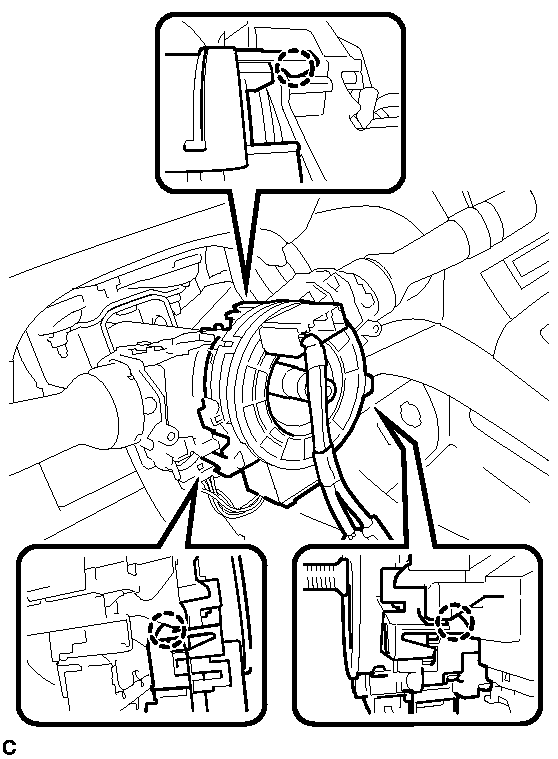

5. Install the spiral cable with sensor sub-assembly with the 3 claws.

  Fig 1: Locating Spiral Cable Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
