System Description
- GENERAL
- G sensors used for the airbag system are installed on various parts on the vehicle and calculate the deceleration rate of each part during a collision.
- Depending on the situation, the center airbag sensor assembly sends a deployment signal to each airbag based on the information from each sensor.
- DEPLOYMENT CONDITION

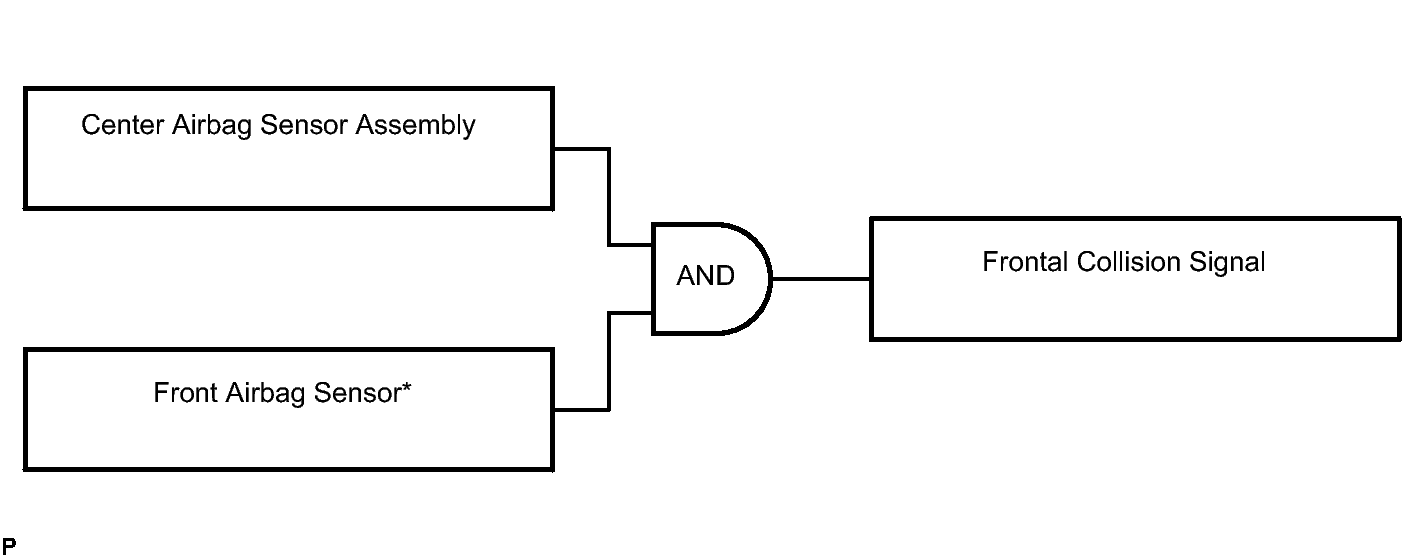

- FRONTAL COLLISION
- Frontal collision signals are produced based on the information from the center airbag sensor assembly and front airbag sensors.
HINT:
*: In case of a frontal collision, the ignition signal could be output with the deceleration sensor ON signal even without a signal from the front airbag sensors.
- Frontal collision signals are used to deploy the airbags except the side airbags and curtain shield airbags.
- Frontal collision signals are produced based on the information from the center airbag sensor assembly and front airbag sensors.

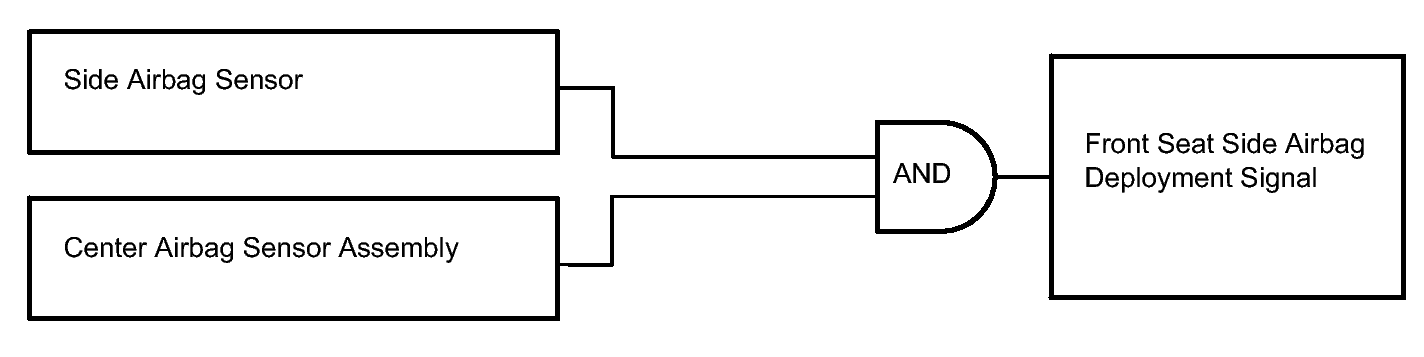

- SIDE COLLISION (1)
- The side airbags are deployed based on signals from the side airbag sensors and center airbag sensor assembly.
HINT:
The curtain shield airbags are deployed at the same time.
- The side airbags are deployed based on signals from the side airbag sensors and center airbag sensor assembly.

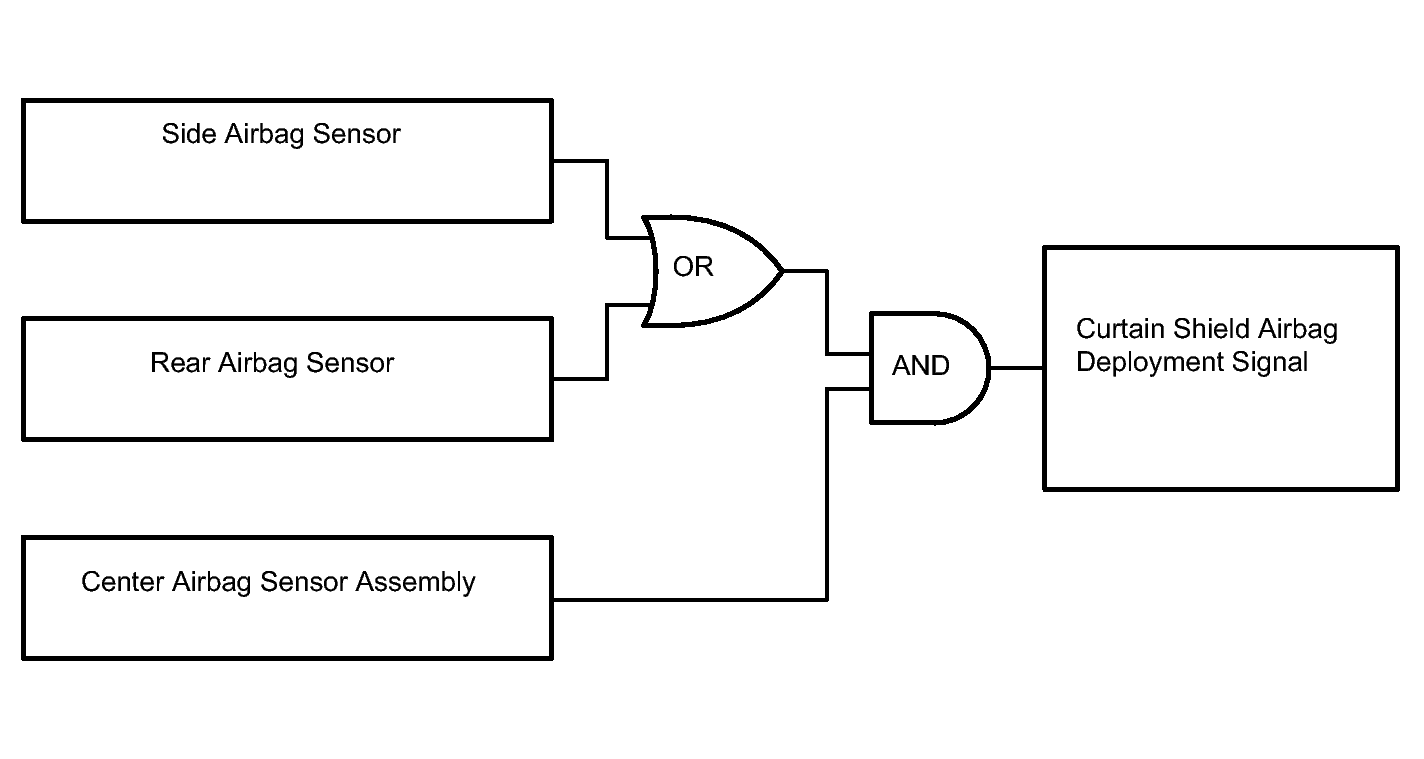

- SIDE COLLISION (2)
- The curtain shield airbags are deployed when both of the following conditions are met:
- Signals from the side airbag sensors or rear airbag sensors are received.
- Signal from the center airbag sensor assembly is received.
- The curtain shield airbags are deployed when both of the following conditions are met:
- FRONTAL COLLISION
