2012 Toyota Matrix S, AWDFACTORY OEM SERVICE PROCEDURE

Knock Sensor: Inspection: Inspection

INSPECT KNOCK SENSOR

Measure the resistance.

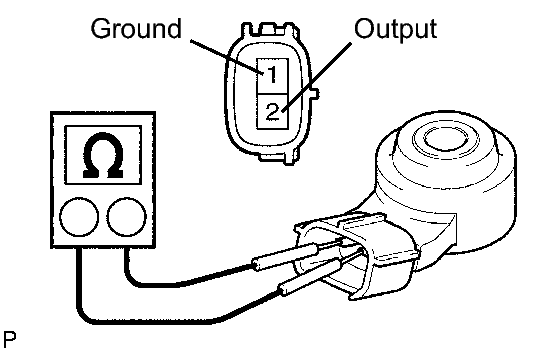

Fig 1: Inspecting Knock Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard Resistance

Tester Connection	Condition	Specified Condition
1 - 2	20°C (68°F)	120 to 280 kΩ

If the result is not as specified, replace the knock sensor.
