2012 Toyota Matrix FWD L4-2.4L (2AZ-FE)FACTORY OEM SERVICE PROCEDURE
Installation
2AZ-FE ENGINE CONTROL: IGNITION COIL AND SPARK PLUG: INSTALLATION
1. INSTALL SPARK PLUG
(a) Install the 4 spark plugs.
Torque : 19 Nm (194 kgf-cm, 14 ft-lbf)
2. INSTALL IGNITION COIL ASSEMBLY

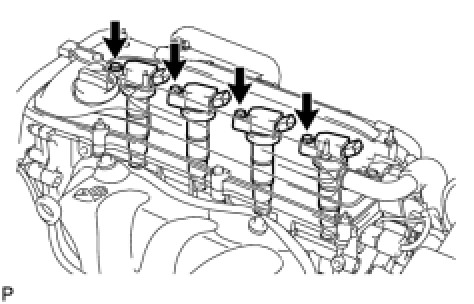

(a) Install the 4 ignition coils with the 4 bolts.
Torque : 9.0 Nm (92 kgf-cm, 80 in-lbf)
(b) Connect the 4 ignition coil connectors.
3. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation
