2012 Toyota Matrix FWD L4-2.4L (2AZ-FE)FACTORY OEM SERVICE PROCEDURE
Removal
U250E AUTOMATIC TRANSMISSION / TRANSAXLE: PARK / NEUTRAL POSITION SWITCH: REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE BATTERY Removal
3. REMOVE BATTERY CARRIER Removal
4. SEPARATE TRANSMISSION CONTROL CABLE ASSEMBLY

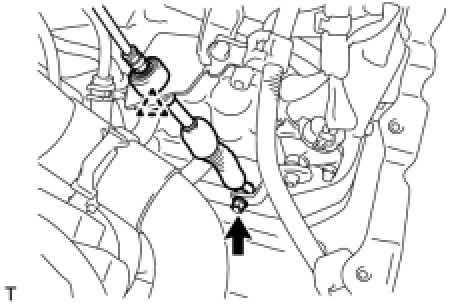

(a) Remove the nut and disconnect the control cable assembly from the control shaft lever.
(b) Remove the clip and disconnect the transmission control cable assembly from the control cable bracket.
5. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

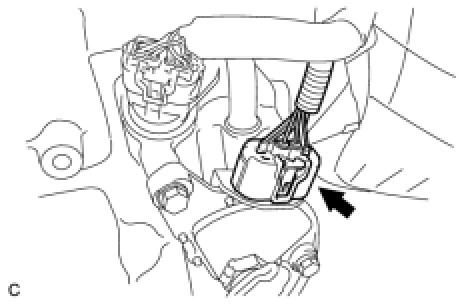

(a) Disconnect the park/neutral position switch connector.

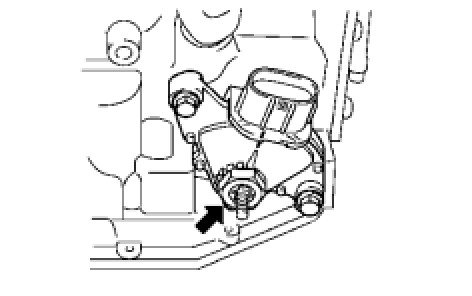

(b) Remove the nut, washer and control shaft lever.

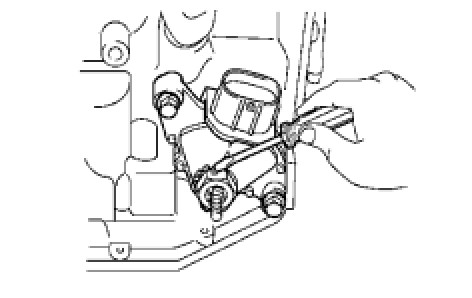

(c) Using a screwdriver, unstake the lock plate.
(d) Remove the lock nut and the lock plate.
(e) Remove the 2 bolts and pull out the park/neutral position switch.
