2012 Toyota Matrix FWD L4-1.8L (2ZR-FE)FACTORY OEM SERVICE PROCEDURE
Installation
U341E AUTOMATIC TRANSMISSION / TRANSAXLE: PARK / NEUTRAL POSITION SWITCH: INSTALLATION
1. INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY
(a) Install the park/neutral position switch assembly to the automatic transaxle.
(b) Temporarily install the 2 bolts.
(c) Replace the lock plate with a new one and tighten the manual valve shaft nut.
Torque : 6.9 Nm (70 kgf-cm, 61 in-lbf)

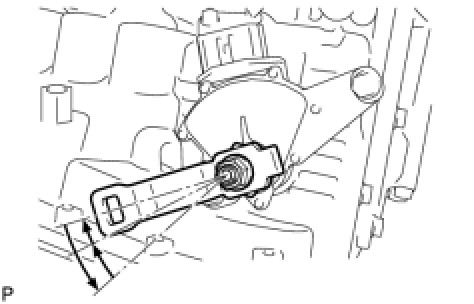

(d) Temporarily install the control shaft lever.
(e) Turn the lever counterclockwise until it stops, then turn it clockwise 2 notches.
(f) Remove the control shaft lever.
(g) Align the groove with the neutral basic line.
(h) Hold the switch in this position and tighten the 2 bolts.
Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

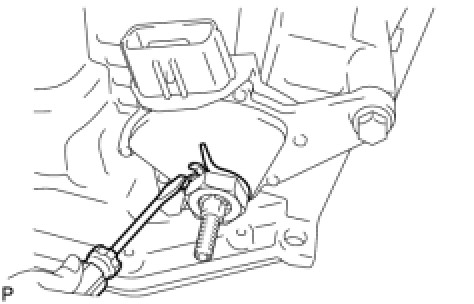

(i) Using a screwdriver, stake the nut with the lock plate.
(j) Install the control shaft lever with the nut and washer.
Torque : 13 Nm (133 kgf-cm, 10 ft-lbf)
(k) Connect the connector to the park/neutral position switch assembly.
2. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
(a) Install the transmission control cable assembly to the control shaft lever with the nut.
Torque : 12 Nm (122 kgf-cm, 9 ft-lbf)
(b) Install the transmission control cable assembly to the bracket with a new clip.
3. INSTALL BATTERY CARRIER Installation
4. INSTALL BATTERY Installation
5. INSPECT SHIFT LEVER POSITION Adjustments
6. ADJUST SHIFT LEVER POSITION Adjustments
7. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY Initial Inspection and Diagnostic Overview
