General Maintenance
HINT:
Inspect these items on a cooled down engine.
- INSPECT DRIVE BELT
Type See Procedure 2ZR-FE Refer to ON-VEHICLE INSPECTION - Step 1 2AZ-FE Refer to ON-VEHICLE INSPECTION - Step 1 - REPLACE ENGINE OIL AND OIL FILTER
Type See Procedure 2ZR-FE Refer to REPLACEMENT 2AZ-FE Refer to REPLACEMENT - REPLACE ENGINE COOLANT
Type See Procedure 2ZR-FE Refer to REPLACEMENT 2AZ-FE Refer to REPLACEMENT - INSPECT EXHAUST PIPES AND MOUNTINGS
- Visually check the pipes, hangers and connections for severe corrosion, leaks or damage.
- INSPECT SPARK PLUGS
Type See Procedure 2ZR-FE Refer to ON-VEHICLE INSPECTION - Step 2 2AZ-FE Refer to ON-VEHICLE INSPECTION - Step 2 - INSPECT BATTERY
Type See Procedure 2ZR-FE Refer to ON-VEHICLE INSPECTION 2AZ-FE Refer to ON-VEHICLE INSPECTION - INSPECT AIR CLEANER FILTER

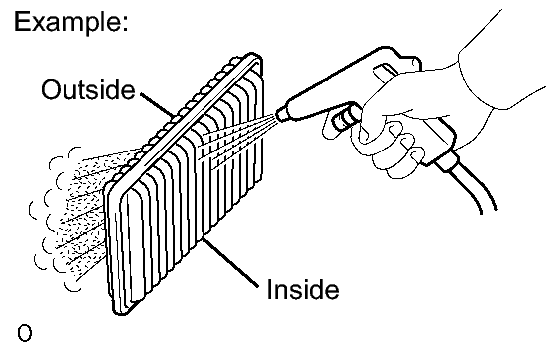

- Remove the air cleaner cap.
- Remove the air filter element.
- Visually check that the air filter is not excessively damaged or oily. If necessary, replace the air filter.
- REPLACE AIR CLEANER FILTER
- Replace the air filter with a new one.
- INSPECT FUEL TANK CAP GASKET
Type See Procedure 2ZR-FE Refer to INSPECTION 2AZ-FE Refer to INSPECTION - INSPECT FUEL LINES, CONNECTIONS, FUEL TANK VAPOR VENT SYSTEM HOSES AND FUEL TANK BANDS
- Visually check the fuel lines for cracks, leakage, loose connections, deformation or tank band looseness.
- INSPECT CHARCOAL CANISTER
Type See Procedure 2ZR-FE Refer to INSPECTION 2AZ-FE Refer to INSPECTION - INSPECT VALVE CLEARANCE
Type See Procedure 2AZ-FE Refer to ON-VEHICLE INSPECTION
