Windshield Glass: Installation: Installation
- INSTALL NO. 2 WINDSHIELD GLASS STOPPER
- Using a brush or a sponge, coat the application area of the No. 2 windshield glass stoppers with Primer G.NOTE:
- Do not apply too much primer.
- Allow the primer to dry for 3 minutes or more.
- Throw away any leftover primer.
HINT:
If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

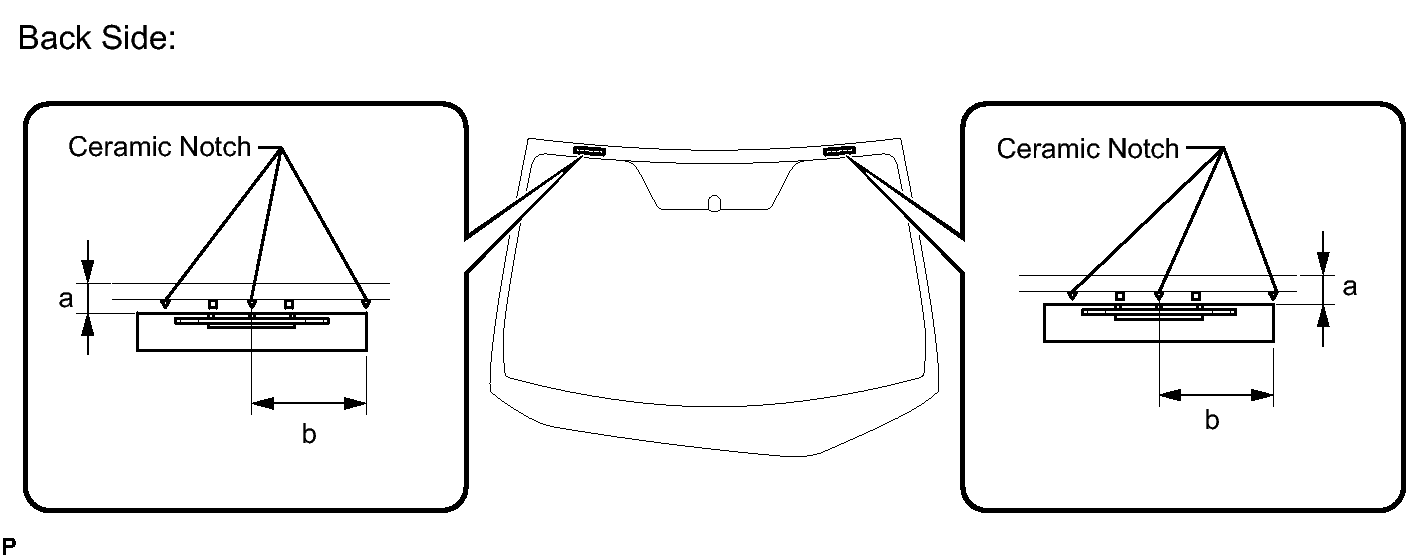

- Install 2 new No. 2 windshield glass stoppers onto the windshield glass, as shown in the illustration.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard Dimension
Area Dimension a 15.0 mm (0.591 in.) b 40.0 mm (1.575 in.) NOTE:Only the 2-piece type No. 1 windshield glass stoppers are supplied. Use the 2-piece type stoppers even if the 1-piece type stoppers were used.
- Using a brush or a sponge, coat the application area of the No. 2 windshield glass stoppers with Primer G.
- INSTALL NO. 1 WINDSHIELD GLASS STOPPER

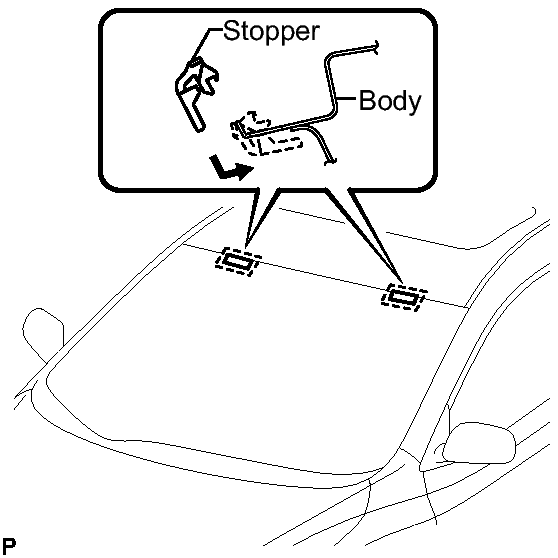

- Install 2 new No. 1 windshield glass stoppers to the vehicle body, as shown in the illustration.
