2012 Toyota Highlander Limited, FWDFACTORY OEM SERVICE PROCEDURE
Throttle Body: Removal: Removal
- REMOVE ENGINE UNDER COVER ASSEMBLY . Refer to REMOVAL - Step 7
- REMOVE NO. 1 ENGINE UNDER COVER . Refer to REMOVAL - Step 8
- DRAIN ENGINE COOLANT . Refer to REPLACEMENT - Step 4
- REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH . Refer to REMOVAL - Step 1
- REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH . Refer to REMOVAL - Step 2
- REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY . Refer to REMOVAL - Step 4
- REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY . Refer to REMOVAL - Step 5
- REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY . Refer to REMOVAL - Step 8
- REMOVE V-BANK COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 25
- REMOVE AIR CLEANER CAP SUB-ASSEMBLY . Refer to REMOVAL - Step 5
- REMOVE THROTTLE BODY

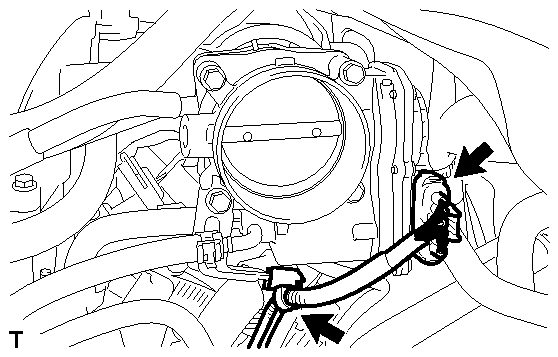

- Disconnect the throttle body connector and clamp.

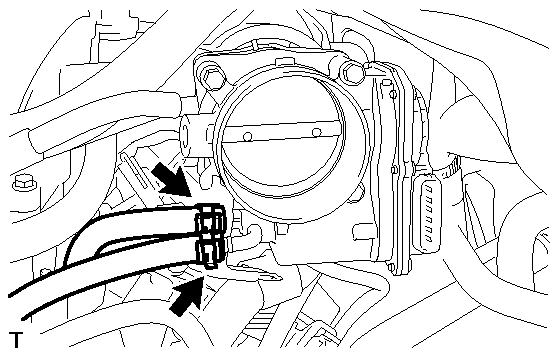

- Disconnect the 2 water by-pass hoses from the throttle body.

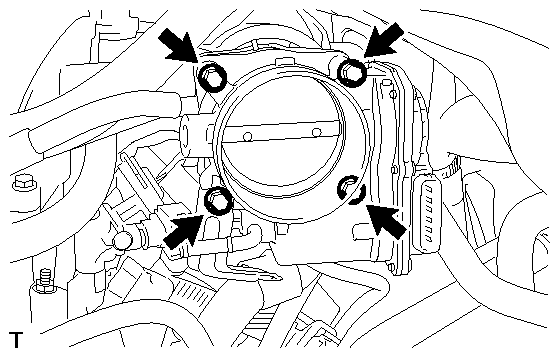

- Remove the 4 bolts and throttle body.
- Remove the throttle body gasket from the intake air surge tank.
