2012 Toyota Camry LFACTORY OEM SERVICE PROCEDURE

Accelerator Pedal: Removal: Removal

REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY
NOTE:
- Avoid physical shock to the accelerator pedal assembly.
- Do not disassemble the accelerator pedal assembly.
1. Disconnect the accelerator pedal sensor connector.

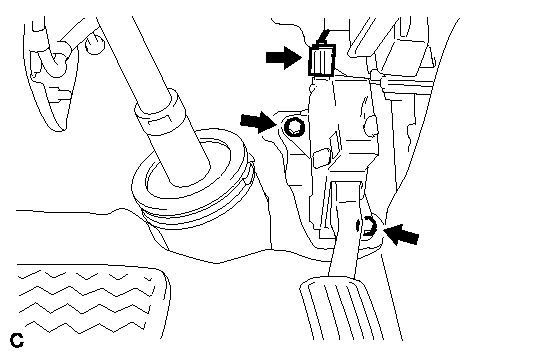

  Fig 1: Identifying Accelerator Pedal Sensor Assembly Connector And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and accelerator pedal sensor assembly.
