EXPRESSIONS OF IGNITION SWITCH

The type of ignition switch used on this model differs according to the specifications of the vehicle. The expressions listed in the table below are used in this service information.

Switch Type		Ignition Switch (position)	Engine Switch (condition)
Expression	Ignition Switch off	LOCK	Off
	Ignition Switch on (IG)	ON	On (IG)
	Ignition Switch on (ACC)	ACC	On (ACC)
	Engine Start	START	Start

PRECAUTION
1. Before inspecting and repairing the fuel system, disconnect the cable from the negative (-) battery terminal.
2. Do not smoke or work near fire when handling the fuel system.
3. Keep gasoline away from rubber or leather parts.
DISCHARGE FUEL SYSTEM PRESSURE
WARNING:
- Perform the following procedures to prevent fuel from spilling out before removing any fuel system parts.
- Pressure will still remain in the fuel line even after performing the following procedures. When disconnecting the fuel line, cover with a shop rag or a piece of cloth to prevent fuel from spraying or spewing out.
1. Disconnecting the fuel pump connector.

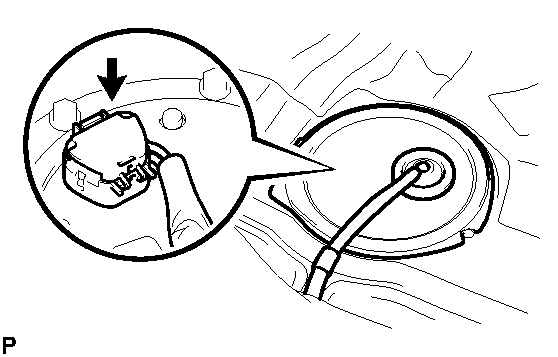

  Fig 1: Identifying Fuel Pump Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Remove the rear seat cushion assembly.
  2. Remove the rear floor service hole cover.
  3. Disconnect the fuel pump connector.
  4. Start the engine.
  5. After the engine stops, turn the ignition switch off.
    HINT:

    DTC P0171/25 (fuel problem) may be detected.
  6. Crank the engine again. Check that the engine does not start.
  7. Remove the fuel tank cap to discharge pressure from the fuel tank.
  8. Disconnect the cable from the negative (-) battery terminal.
  9. Reconnect the fuel pump connector.
  10. Install the rear floor service hole cover.
  11. Install the rear seat.
FUEL SYSTEM
1. When disconnecting the high fuel pressure line, a large amount of gasoline will spill out, so observe the following procedures:
  1. Discharge the fuel system pressure. (step 3)
  2. Disconnect the fuel pump tube. Refer to REMOVAL - Step 5 .
  3. Drain the fuel that remains inside the fuel pump tube.
  4. To protect the disconnected fuel pump tube from damage and contamination, cover it with a plastic bag.

    Fig 2: Covering Fuel Pump Main Tube With Plastic Bag
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Put a container under the connection part.
2. Observe the following precautions when removing and installing fuel injectors:

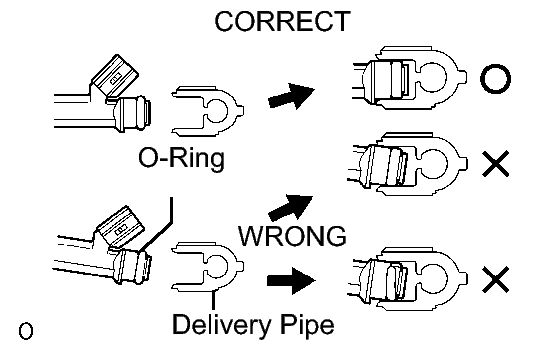

  Fig 3: Identifying Fuel Injectors O-Ring Correct/Incorrect Fitment
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Never reuse the O-ring.
  2. When placing a new O-ring on the injector, do not damage the O-ring.
  3. Coat a new O-ring with spindle oil or gasoline before installing.
    NOTE:
    Do not use engine oil, gear oil or brake fluid.
3. Install the injector to the delivery pipe and lower intake manifold as shown in the illustration.

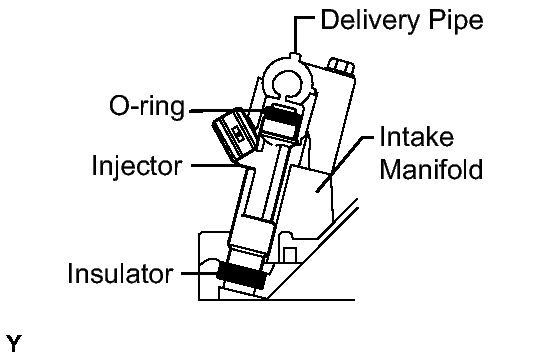

  Fig 4: Identifying Injector To Delivery Pipe Correct Installation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
