2012 Toyota Avalon BaseFACTORY OEM SERVICE PROCEDURE

Engine Control System (Service Information): ECM: Removal: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
If the cable is disconnected, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH . Refer to REMOVAL - Step 1 .
REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH . Refer to REMOVAL - Step 2 .
REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY . Refer to REMOVAL - Step 3 .
REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY . Refer to REMOVAL - Step 4 .
REMOVE COWL TOP PANEL OUTER . Refer to REMOVAL - Step 5 .
REMOVE ECM
1. Remove the 3 nuts.

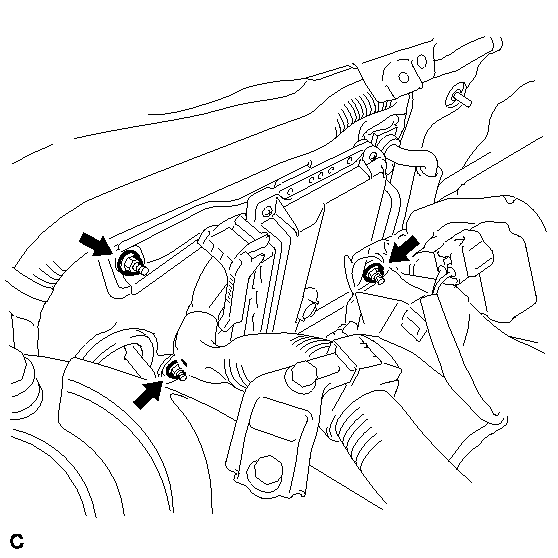

  Fig 1: Locating ECM Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Separate the ECM from the body.

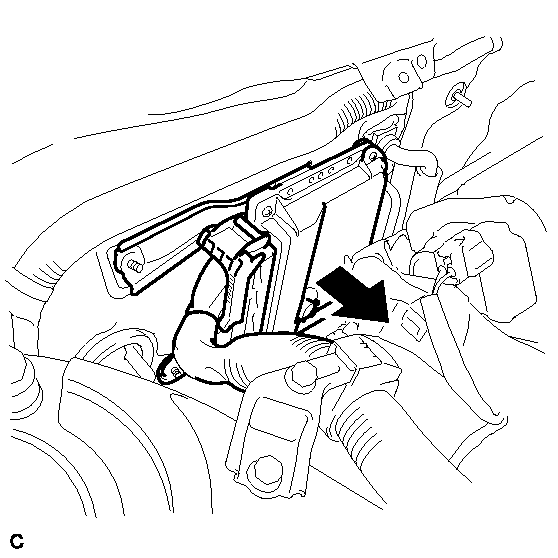

  Fig 2: Separating ECM From Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
