2012 Toyota 4Runner TrailFACTORY OEM SERVICE PROCEDURE
Throttle Body: Removal: Removal
- REMOVE UPPER RADIATOR SUPPORT SEAL . Refer to REMOVAL - Step 14
- REMOVE FRONT BUMPER COVER LOWER . Refer to REMOVAL - Step 6
- REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 7
- DRAIN ENGINE COOLANT . Refer to REPLACEMENT - Step 5
- REMOVE V-BANK COVER . Refer to REMOVAL - Step 6
- REMOVE NO. 1 AIR CLEANER HOSE . Refer to REMOVAL - Step 7
- REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

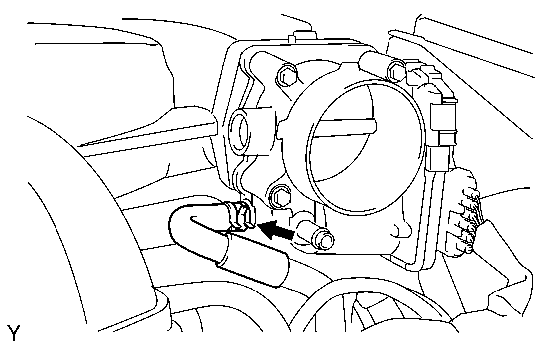

- Disconnect the No. 5 water by-pass hose.

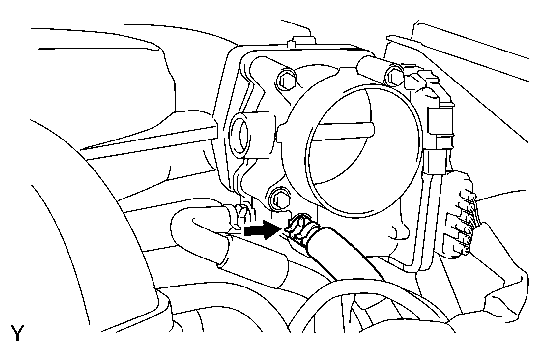

- Disconnect the No. 4 water by-pass hose.

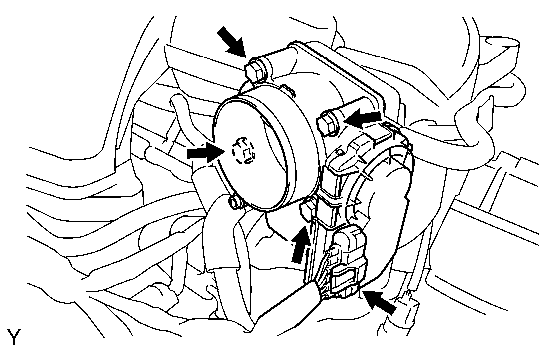

- Disconnect the throttle position sensor and throttle control motor connector.
- Remove the 4 bolts, throttle body with motor and gasket.
