Power Windows do not Operate at All: Procedure

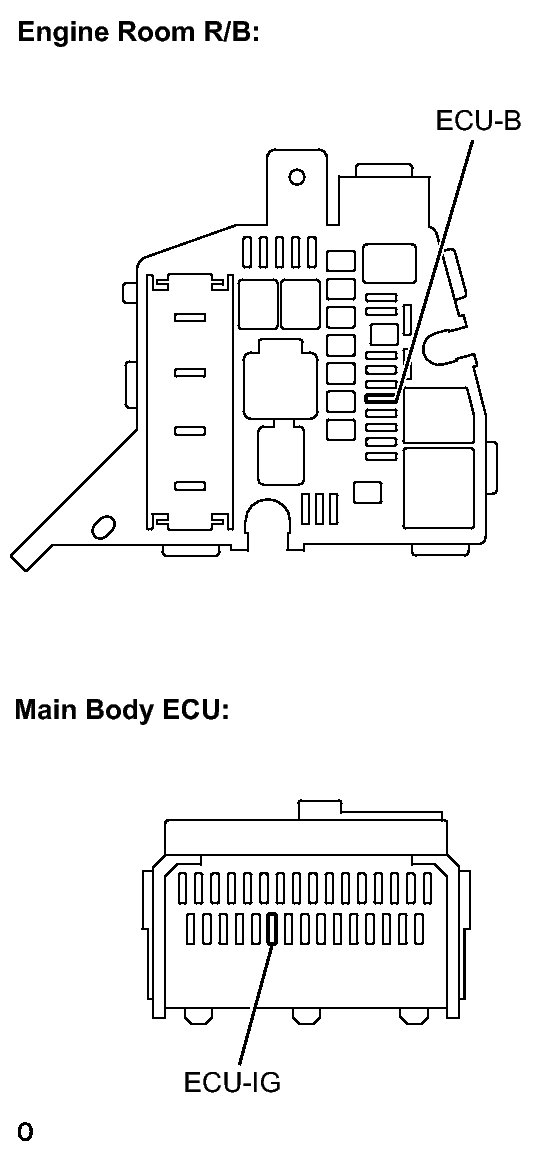

- INSPECT FUSES (ECU-B, ECU-IG)
- Remove the ECU-B fuse from the engine room relay block.
- Remove the ECU-IG fuse from the main body ECU.
- Measure the resistance.
Standard resistance
Below 1Ω
- Reinstall the fuses.
NG → REPLACE FUSE
OK: Go to next step
- INSPECT MAIN BODY ECU (PWR RELAY)

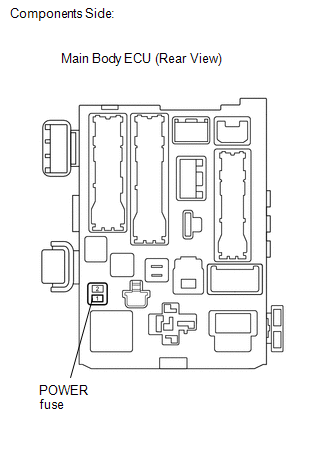

- Remove the POWER fuse from the main body ECU.
- Turn the ignition switch to ON.
- Measure the voltage between the POWER fuse terminal of the main body ECU and body ground.
Standard voltage
Tester Connections Ignition Switch Conditions Specified Conditions POWER fuse terminal (1) - Body ground ON 11 to 14 V - Reinstall the POWER fuse.
NG → REPLACE MAIN BODY ECU (PWR RELAY)
OK: Go to next step

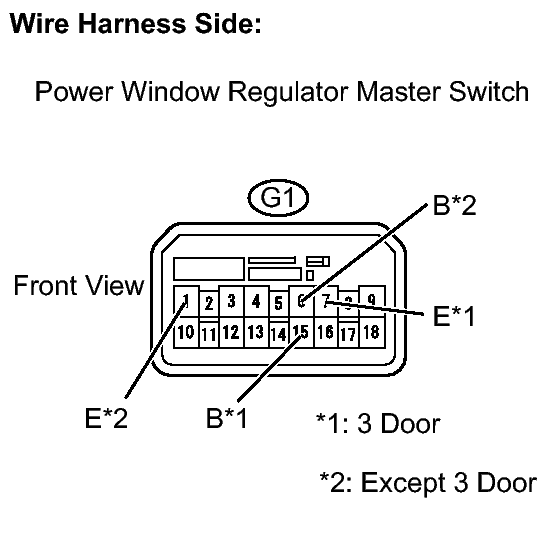

- CHECK HARNESS AND CONNECTOR (POWER WINDOW MASTER SWITCH - BATTERY AND BODY GROUND)
- Disconnect the G1 power window regulator master switch assembly connector.
- Measure the voltage of the wire harness side connector.
Standard voltage
3 Door
Tester Connection Condition Specified Condition G1-15 (B)- Body ground Ignition switch ON 11 to 14 V Standard voltage
Except 3 door
Tester Connection Condition Specified Condition G1-6 (B)- Body ground Ignition switch ON 11 to 14 V - Measure the resistance of the wire harness side connector.
Standard resistance
3 Door
Tester Connection Specified Condition G1-7 (E)- Body ground Below 1 Ω Standard resistance
Except 3 door
Tester Connection Specified Condition G1-1 (E)- Body ground Below 1 Ω - Reconnect the G1 power window regulator master switch assembly connector.
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
