2010 Toyota Sienna XLE, AWDFACTORY OEM SERVICE PROCEDURE

VVT Sensor: Removal: Removal

  1. REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY

    HINT:

    Refer to REMOVAL

  2. REMOVE FRONT OUTER COWL TOP PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 18
  3. DRAIN ENGINE COOLANT  . Refer to REPLACEMENT - Step 3
  4. REMOVE V-BANK COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 19
  5. REMOVE NO. 2 AIR CLEANER INLET  . Refer to REMOVAL - Step 20
  6. REMOVE NO. 1 AIR CLEANER INLET  . Refer to REMOVAL - Step 21
  7. REMOVE AIR CLEANER CAP SUB-ASSEMBLY  See step  7
  8. REMOVE AIR CLEANER CASE SUB-ASSEMBLY  . Refer to REMOVAL - Step 24
  9. REMOVE INTAKE AIR SURGE TANK ASSEMBLY  See step  8
  10. REMOVE VVT SENSOR (for Bank 1 Intake Side)
    1. Disconnect the VVT sensor connector.

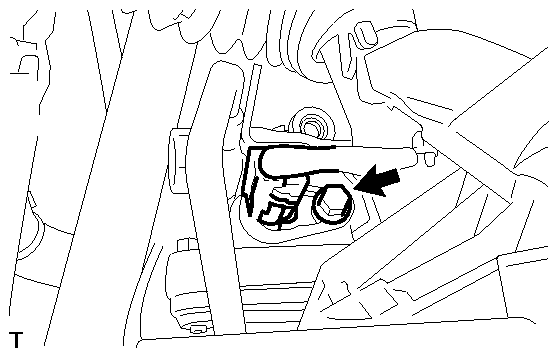

      Fig 1: Locating Bolt On VVT Sensor For Bank 1 Intake Side
      GTY133074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor.
  11. REMOVE VVT SENSOR (for Bank 1 Exhaust Side)
    1. Disconnect the VVT sensor connector.

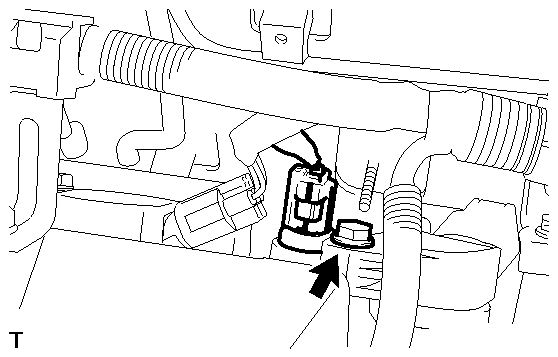

      Fig 2: Locating Bolt On VVT Sensor For Bank 1 Exhaust Side
      GTY146903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor.
  12. REMOVE VVT SENSOR (for Bank 2 Intake Side)
    1. Disconnect the VVT sensor connector.

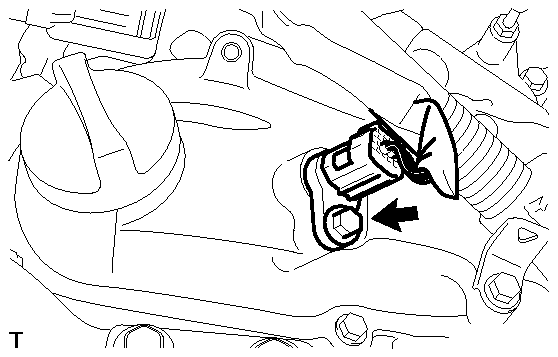

      Fig 3: Locating Bolt On VVT Sensor For Bank 2 Intake Side
      GTY146902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor.
  13. REMOVE VVT SENSOR (for Bank 2 Exhaust Side)
    1. Disconnect the VVT sensor connector.

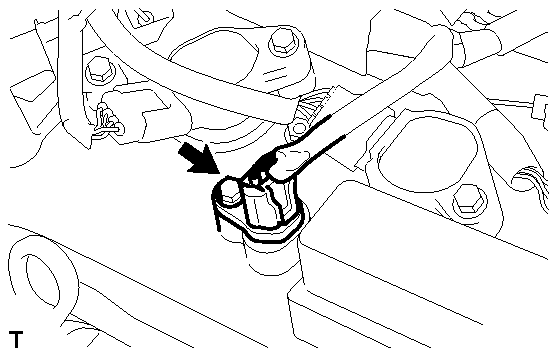

      Fig 4: Locating Bolt On VVT Sensor For Bank 2 Exhaust Side
      GTY129628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor.
