Engine Coolant Temperature Sensor: Inspection: Inspection
- INSPECT ENGINE COOLANT TEMPERATURE SENSOR

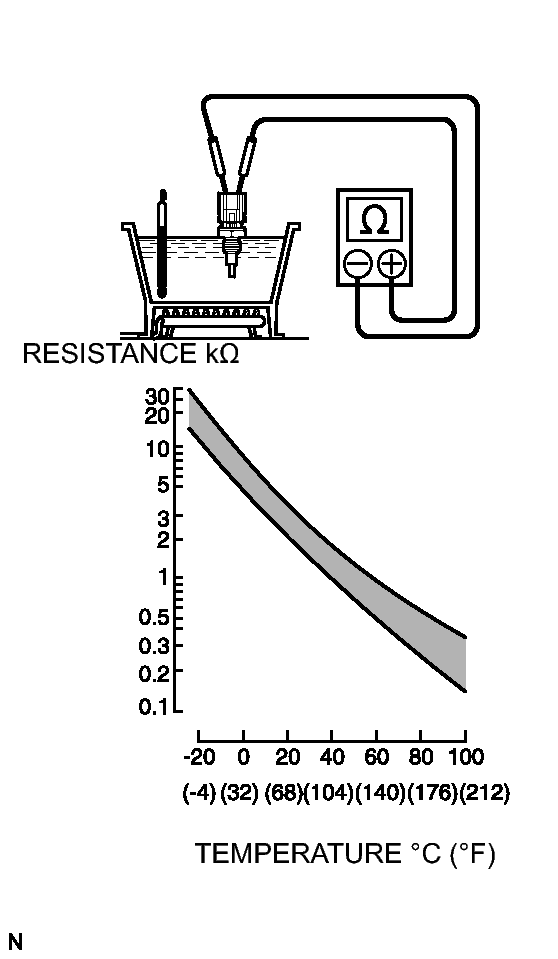

- Using an ohmmeter, measure the resistance between the terminals.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard resistance
Condition Specified Condition 20°C (68°F) 2.32 to 2.59 kΩ 80°C (176°F) 0.310 to 0.326 kΩ - If the result is as specified, do not replace the engine coolant temperature sensor.
- If the result is not as specified, replace the engine coolant temperature sensor.
NOTE:In case of checking the engine coolant temperature sensor in water, do not allow water to go into the terminals. After checking, dry the engine coolant temperature sensor.
- Using an ohmmeter, measure the resistance between the terminals.
