2010 Toyota Sequoia Platinum, 5.7 Y, 4WDFACTORY OEM SERVICE PROCEDURE

Knock Sensor: Removal: Removal

REMOVE INTAKE MANIFOLD
1. Remove the intake manifold. Refer to REMOVAL .
REMOVE NO. 2 CYLINDER HEAD COVER . Refer to REMOVAL - Step 9
REMOVE NO. 1 ENGINE COVER . Refer to REMOVAL - Step 11
REMOVE KNOCK SENSOR

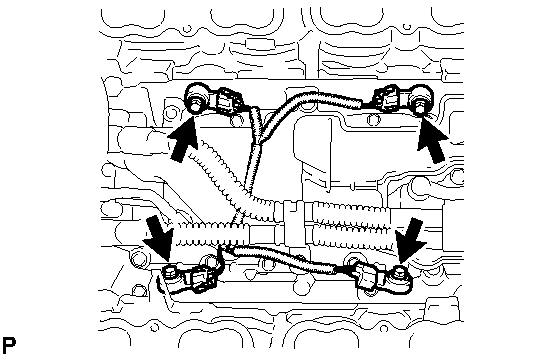

Fig 1: Locating Knock Sensor Connectors And Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the 4 knock sensor connectors.
2. Remove the 4 bolts and 4 knock sensors.
