2010 Toyota Prius BaseFACTORY OEM SERVICE PROCEDURE

Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER

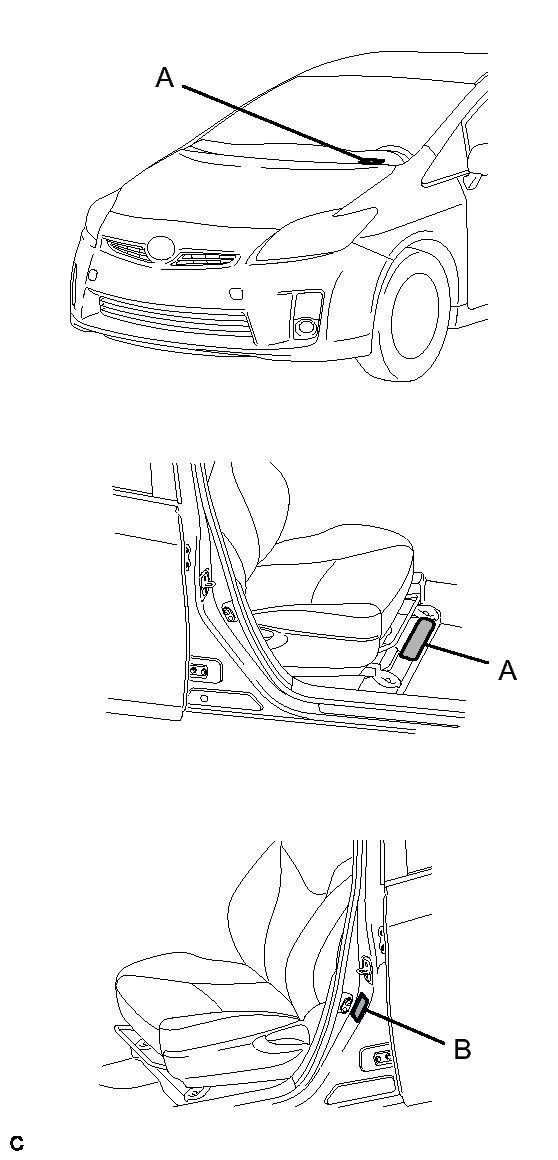

1. The vehicle identification number is stamped on the vehicle body and on the certification label as shown in the illustration.
  A

  Vehicle Identification Number

  B

  Certification Label

  Fig 1: Identifying Vehicle Identification Number & Certification Label
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER

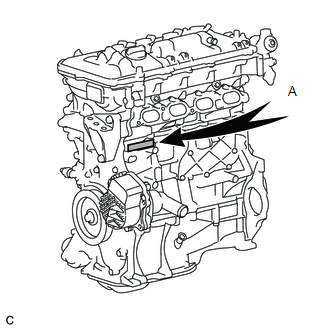

1. The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.
  A

  2ZR-FXE Engine Serial Number

  Fig 2: Identifying Engine Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

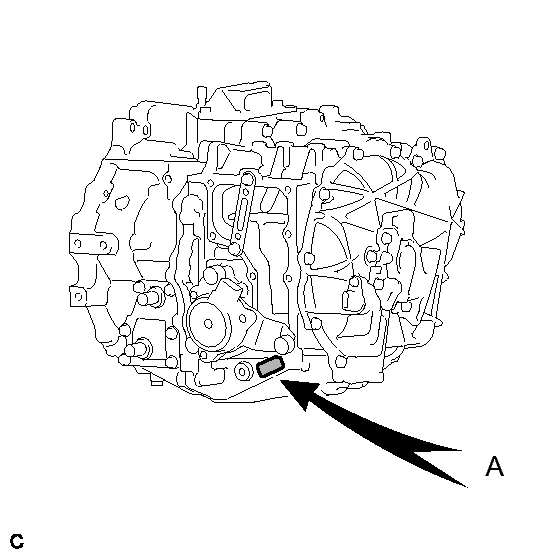

2. The transaxle code is stamped on the case as shown in the illustration.

  Fig 3: Identifying Transaxle Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A

  P410 Transaxle Code
