Integration Relay: Inspection: Inspection
- INSPECT INTEGRATION NO. 2 RELAY TEXT IN ILLUSTRATION

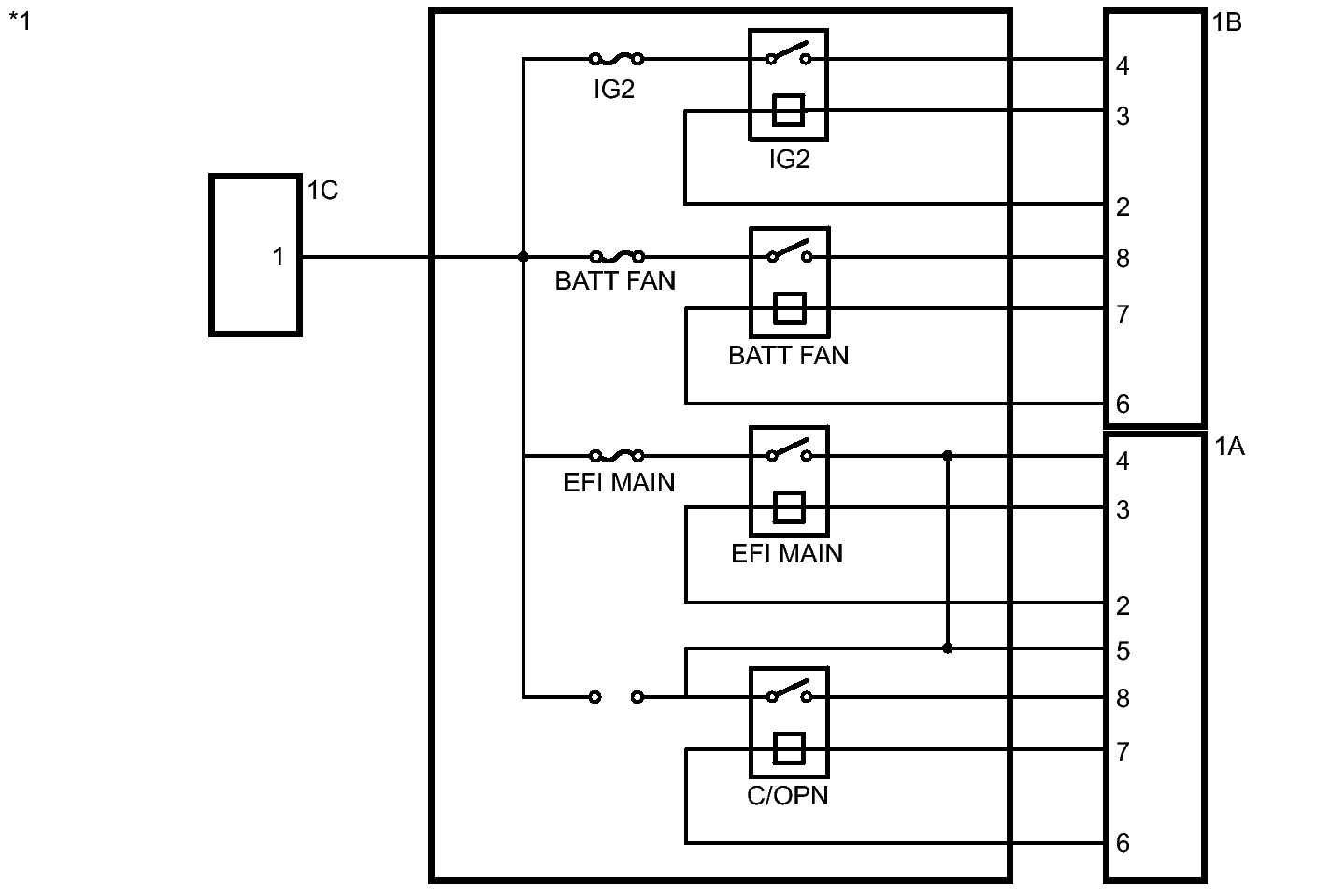

*1 Integration Relay - - - IG2 RELAY:
- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION
*1 Integration Relay Standard Resistance
Tester Connection Condition Specified Condition Integration relay (1C-1) - Integration relay (1B-4) Battery voltage is not applied between terminals 1B-3 and 1B-2 10 kΩ or higher Integration relay (1C-1) - Integration relay (1B-4) Battery voltage is applied between terminals 1B-3 and 1B-2 Below 1 Ω If the resistance is not as specified, replace the integration relay.
- Measure the resistance according to the value(s) in the table below.
- EFI MAIN RELAY:
- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION
*1 Integration Relay Standard Resistance
Tester Connection Condition Specified Condition Integration relay (1C-1) - Integration relay (1A-4) Battery voltage is not applied between terminals 1A-2 and 1A-3 10 kΩ or higher Integration relay (1C-1) - Integration relay (1A-4) Battery voltage is applied between terminals 1A-2 and 1A-3 Below 1 Ω If the resistance is not as specified, replace the integration relay.
- Measure the resistance according to the value(s) in the table below.
- C/OPN RELAY:
- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION
*1 Integration Relay Standard Resistance
Tester Connection Condition Specified Condition Integration relay (1A-5) - Integration relay (1A-8) Battery voltage is not applied between terminals 1A-6 and 1A-7 10 kΩ or higher Integration relay (1A-5) - Integration relay (1A-8) Battery voltage is applied between terminals 1A-6 and 1A-7 Below 1 Ω If the resistance is not as specified, replace the integration relay.
- Measure the resistance according to the value(s) in the table below.
- BATT FAN RELAY:
- Measure the resistance according to the value(s) in the table below.TEXT IN ILLUSTRATION
*1 Integration Relay Standard Resistance
Tester Connection Condition Specified Condition Integration relay (1C-1) - Integration relay (1B-8) Battery voltage is not applied between terminals 1B-7 and 1B-6 10 kΩ or higher Integration relay (1C-1) - Integration relay (1B-8) Battery voltage is applied between terminals 1B-7 and 1B-6 Below 1 Ω If the resistance is not as specified, replace the integration relay.
- Measure the resistance according to the value(s) in the table below.
- IG2 RELAY:
