Camshaft Position Sensor: Inspection: Inspection

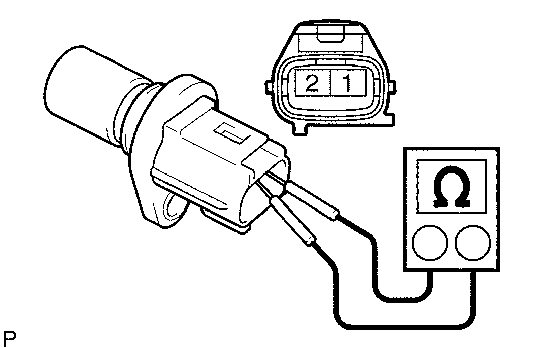

- INSPECT CAMSHAFT POSITION SENSOR
- Measure the resistance.
Standard Resistance
Tester Connection Condition Specified Condition 1 - 2 Cold 835 to 1400 Ω 1 - 2 Hot 1060 to 1645 Ω HINT:
In the table above, the terms Cold and Hot refer to the temperature of the coils. Cold means approximately -10 to 50°C (14 to 122°F). Hot means approximately 50 to 100°C (122 to 212°F).
If the resistance is not as specified, replace the camshaft position sensor.
- Measure the resistance.
