2010 Toyota Matrix S, FWD, AutomaticFACTORY OEM SERVICE PROCEDURE

Engine Control System (2AZ-FE) (Service Information): ECM: Removal: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 11
  3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE  See step  3
  4. REMOVE AIR CLEANER CASE  . Refer to REMOVAL - Step 14
  5. REMOVE ECM
    1. Separate the wire harness clamp.

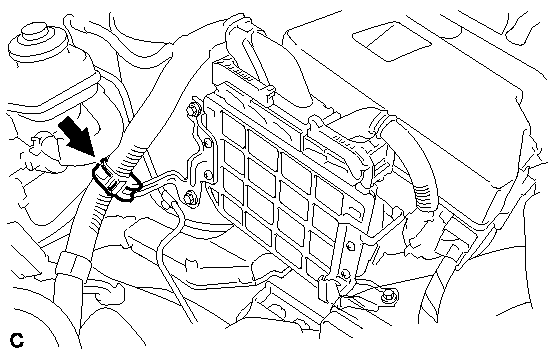

      Fig 1: Locating Wire Harness Clamp
      GTY181973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 ECM connectors.
      1. Push the locks on the 2 levers, then raise the levers, and disconnect the 2 ECM connectors.

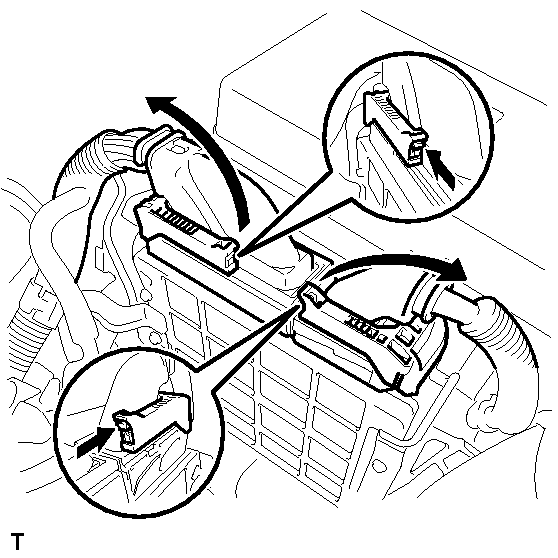

        Fig 2: Disconnecting ECM Connectors
        GTY172851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
