2010 Toyota Matrix FWD L4-2.4L (2AZ-FE)FACTORY OEM SERVICE PROCEDURE
IG Power Source Circuit
HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM (for Manual Air Conditioning System): IG Power Source Circuit
- IG Power Source Circuit
DESCRIPTION
The main power source is supplied to the A/C amplifier when the ignition switch is turned to ON.
The power source is used for operating the A/C amplifier and servo motor, etc.

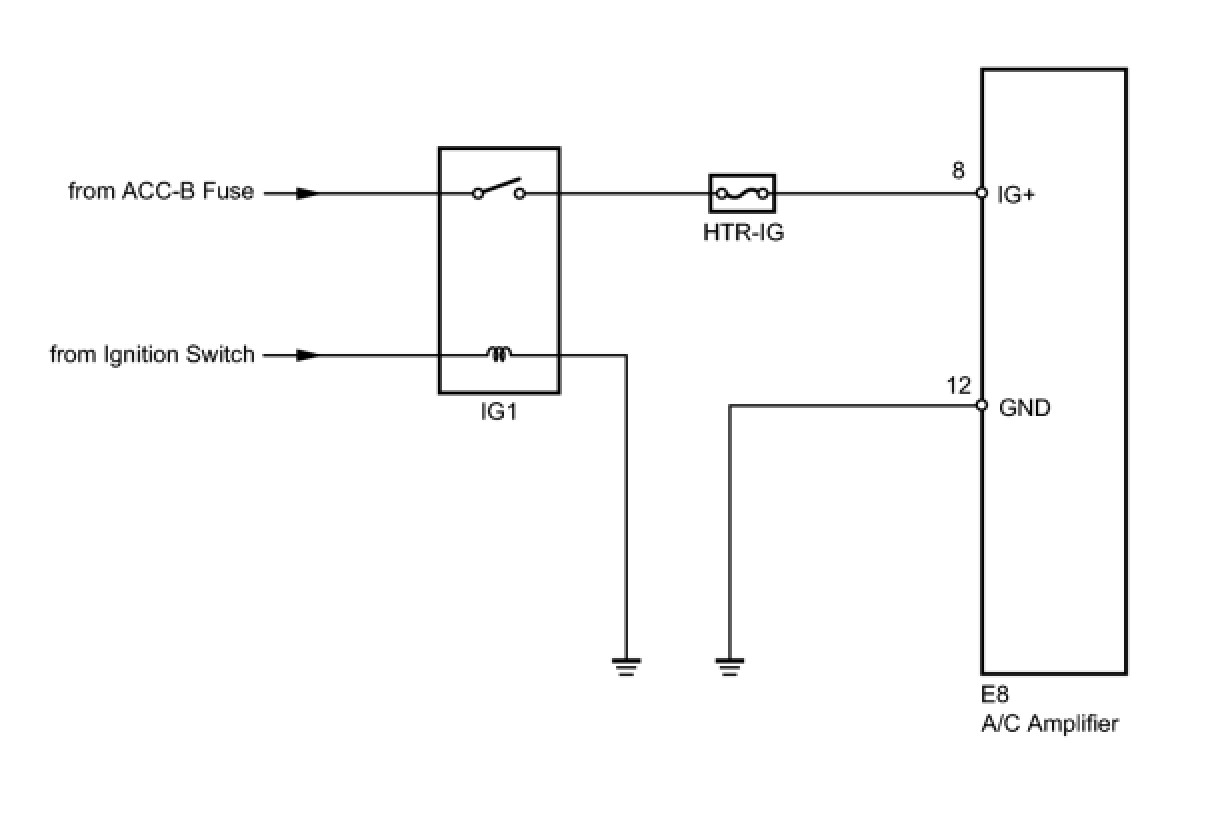

WIRING DIAGRAM
INSPECTION PROCEDURE
HINT
Start the engine before inspection. Check the IG1 relay or battery if the engine does not start.
PROCEDURE
1. INSPECT FUSE (HTR-IG)
(a) Remove the HTR-IG fuse from the instrument panel junction block.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
NG -- REPLACE FUSE (HTR-IG)
OK -- Continue to next step.
2. INSPECT AIR CONDITIONING AMPLIFIER (IG+ - GND)
(a) Remove the A/C amplifier with the connectors still connected.
(b) Turn the ignition switch to ON.

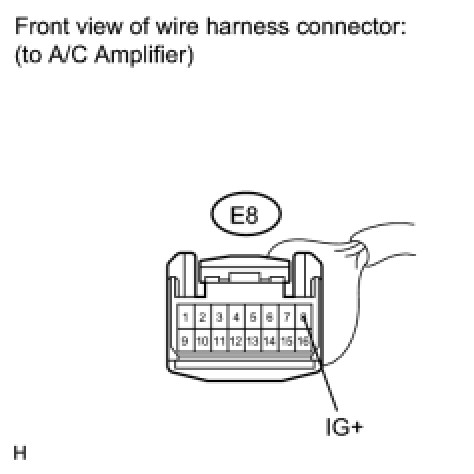

(c) Measure the voltage according to the value(s) in the table below.

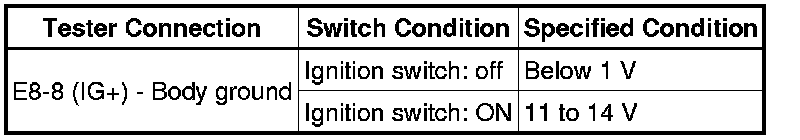

Standard Voltage:
NG -- CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - BATTERY)
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE Symptom Related Diagnostic Procedures
3. CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - BATTERY)
(a) Disconnect the A/C amplifier connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
4. CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - BODY GROUND)
(a) Disconnect the A/C amplifier connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE AIR CONDITIONING AMPLIFIER Removal
