Camshaft Oil Control Valve: Inspection: Inspection
- INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLYÂ
- Measure the resistance between the terminals.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard Resistance
Tester Connection Condition Specified Condition 1 - 2 20°C (68°F) 6.9 to 7.9 Ω If the result is not as specified, replace the oil control valve assembly.

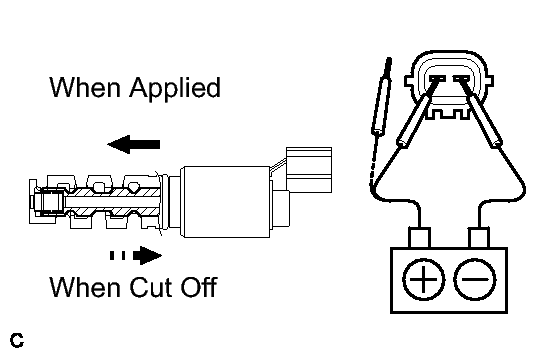

- Check the operation
- Connect a positive (+) battery lead to terminal 1 and a negative (-) battery lead to terminal 2, and check the movement of the valve.
- Measure the resistance between the terminals.
