2010 Toyota Matrix Base, StandardFACTORY OEM SERVICE PROCEDURE

Heated Oxygen Sensor: Removal: Removal

REMOVE HEATED OXYGEN SENSOR
1. Disconnect the heated oxygen sensor connector.
2. Remove the grommet and pull the sensor connector out of the cabin through the floor panel.
3. Remove the wire harness clamp bracket and disconnect the wire harness clamp.

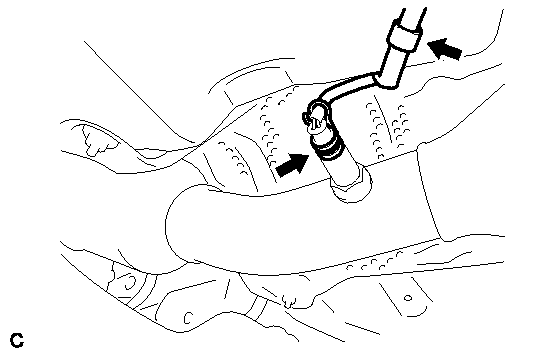

  Fig 1: Identifying Heated Oxygen Sensor And SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using SST, remove the heated oxygen sensor.
  - SST: 09224-00010

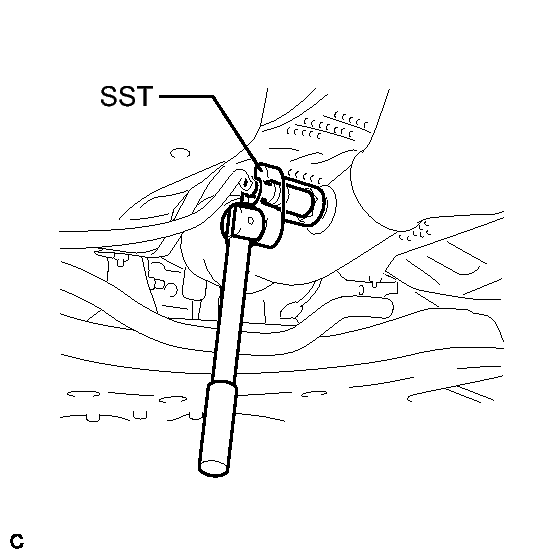

  Fig 2: View Of Heated Oxygen Sensor And SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
