Repair Instruction: Precaution: Precaution

1. HINTS ON OPERATIONS

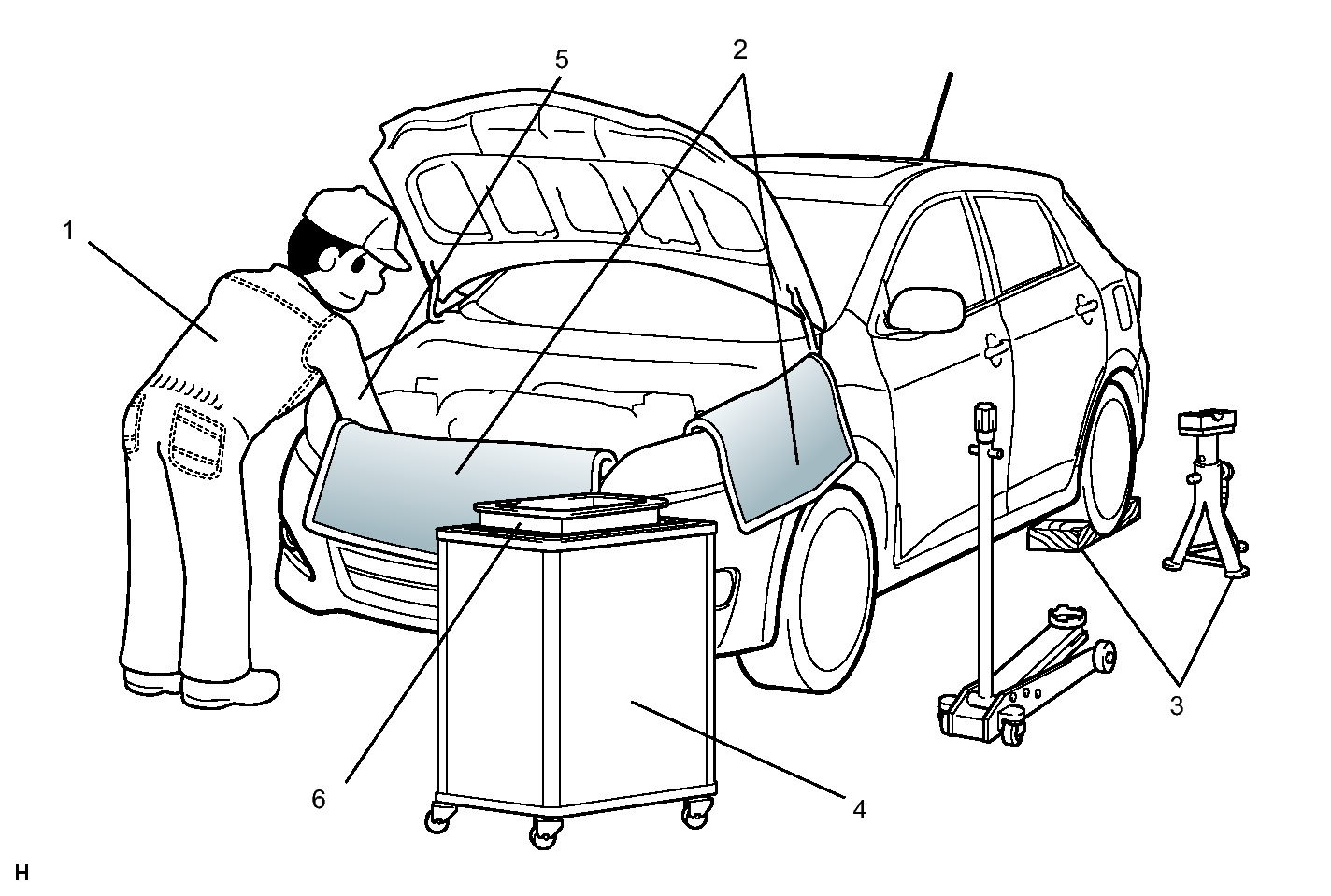

   Fig 1: Precaution Hints

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1	Attire	Always wear a clean uniform. A hat and safety shoes must be worn.
   2	Vehicle protection	Prepare a grille cover, fender cover, seat cover and floor mat before starting work.
   3	Safety procedures	When working with 2 or more persons, be sure to check the safety of one another. When working with the engine running, make sure to provide ventilation for exhaust fumes in the workshop. If working on high temperature, high pressure, rotating, moving, or vibrating parts, wear appropriate safety equipment and take extra care not to injure yourself or others. When jacking up the vehicle, be sure to support the specified locations with safety stands. When lifting up the vehicle, use appropriate safety equipment.
   4	Preparation of tools and measuring equipment	Before starting work, prepare a tool stand, SST, measuring equipment, oil, and any replacement parts required.
   5	Removal and installation, disassembly and assembly operations	Diagnose with a thorough understanding of proper procedures and of the reported problem. Before removing any parts, check the general condition of the assembly and for deformation and damage. If the procedure is complicated, take notes. For example, note the total number of electrical connections, bolts, or hoses removed. Add matchmarks to ensure reassembly of components in the original positions. Temporarily mark hoses and their fittings if needed. Clean and wash the removed parts if necessary and assemble them after a thorough check.
   6	Removed parts	Place the removed parts in a separate box to avoid mixing them up with new parts or contaminating the new parts. For non-reusable parts such as gaskets, O-rings, and self-locking nuts, replace them with new ones as instructed in this service information. Retain the removed parts for customer inspection, if requested.

2. JACKING UP AND SUPPORTING VEHICLE
   1. Care must be taken when jacking up and supporting the vehicle. Be sure to lift and support the vehicle at the proper locations.
3. PRECOATED PARTS

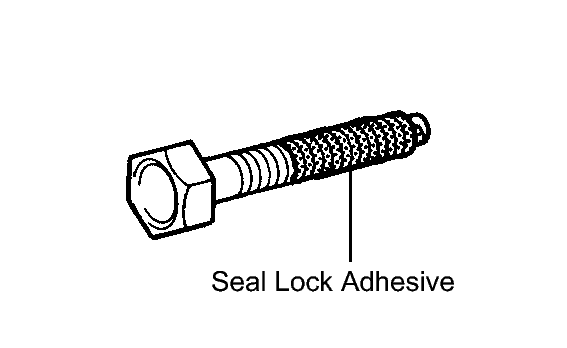

   Fig 2: Identifying Seal Lock Adhesive

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Precoated parts are bolts and nuts that are coated with seal lock adhesive at the factory.
   2. If a precoated part is retightened, loosened or moved in any way, it must be recoated with the specified adhesive.
   3. When reusing a precoated part, clean off the old adhesive and dry the part with compressed air. Then apply new seal lock adhesive appropriately to that part.
   4. Some seal lock agents harden slowly. You may have to wait for the seal lock adhesive to harden.
4. GASKETS
   1. When necessary, use a sealer on gaskets to prevent leaks.
5. BOLTS, NUTS AND SCREWS
   1. Carefully follow all the specifications for tightening torque. Always use a torque wrench.
6. FUSES

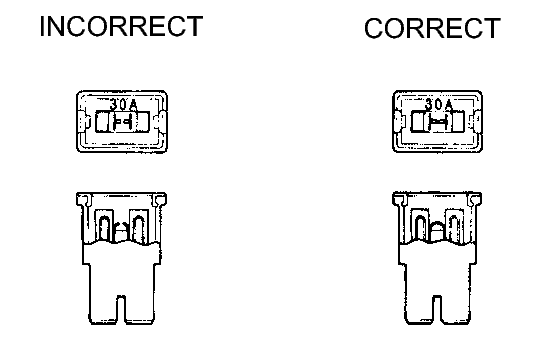

   Fig 3: Identifying Fuses Condition

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. When inspecting a fuse, check that a wire of the fuse is not broken.
   2. If the wire of a fuse is broken, confirm that there are no shorts in its circuit.
   3. When a fuse is replaced, a fuse with the same amperage rating must be used.

      Illustration	Symbol	Part Name	Abbreviation
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	FUSE	FUSE
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	MEDIUM CURRENT FUSE	M-FUSE
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	HIGH CURRENT FUSE	H-FUSE
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	FUSIBLE LINK	FL
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	CIRCUIT BREAKER	CB

7. CLIPS
   1. The removal and installation methods of typical clips used for vehicle body parts are shown in the following table.

      HINT:

      If clips are damaged during a procedure, always replace the damaged clips with new ones.

      Shape (Example)	Removal/Installation
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 Remove the clips with a clip remover or pliers.
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 Remove the clips with a clip remover or screwdriver.
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 Remove the clips with a wide scraper to prevent panel damage.
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 Remove the clips by pushing the center pin through and prying out the shell.
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 Remove the clips by unscrewing the center pin and prying out the shell.
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 Remove the clips by prying out the pin and then prying out the shell.

8. CLAWS
   1. The removal and installation methods of typical claws used for vehicle body parts are shown in the table below.

      HINT:

      If claws are damaged during a procedure, always replace the cap or cover that has damaged claws with a new one.

      Shape (Example)	Illustration	Procedures
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Using a screwdriver, disengage the claws and remove the cap or cover.
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Using a screwdriver, disengage the claws and remove the cap or cover.
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Using a screwdriver, detach the claws and remove the cap or cover.

9. HINGES, GUIDES, CLAMPS, PINS, ETC.
   1. The removal and installation methods of typical hinges, guides, clamps and pins used for vehicle body parts are shown in the table below.

      HINT:

      If clamps are damaged during a procedure, always replace the cap or cover that has damaged clamps with a new one.

      Shape (Example)	Removal/Installation
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

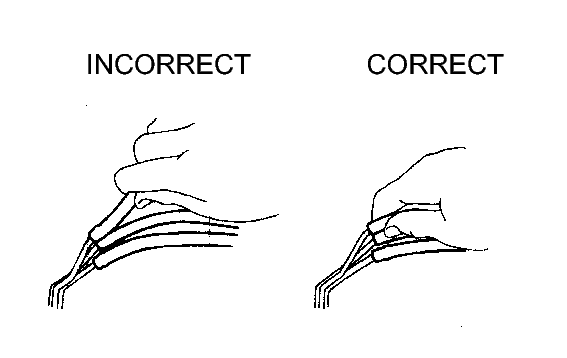

10. REMOVAL AND INSTALLATION OF VACUUM HOSES
    Fig 4: Precaution For Disconnecting Vacuum Hose
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. To disconnect a vacuum hose, pull and twist from the end of the hose. Do not pull from the middle of the hose as this may damage the hose.
    2. When disconnecting vacuum hoses, use tags to identify where they should be reconnected.
       Fig 5: Identifying Tag On Vacuum Hoses

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. After completing any hose related repairs, double check that the vacuum hoses are properly connected. The label under the hood shows the proper layout.
    4. When using a vacuum gauge, never force the hose onto a connector that is too large. If a hose has been stretched, air may leak. Use a step-down adapter if necessary.
11. TORQUE WHEN USING TORQUE WRENCH WITH EXTENSION TOOL
    Fig 6: Identifying Torque Wrench Dimension

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Use the formula below to calculate special torque values for situations where SST or an extension tool is combined with a torque wrench.
       Fig 7: Identifying SST Dimension

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       • Formula

         T' = (L2/(L1 + L2)) * T

         T'	Reading of torque wrench {N*m (kgf*cm, ft.*lbf)}
         T	Torque {N*m (kgf*cm, ft.*lbf)}
         L1	Length of SST or extension tool {cm (in.)}
         L2	Length of torque wrench {cm (in.)}

       NOTE:

       If an extension tool or SST is combined with a torque wrench and used to tighten to a torque specification in this service information, the actual torque will be excessive and parts will be damaged.

This vehicle is equipped with a Supplemental Restraint System (SRS).

1. GENERAL NOTICE
   1. As malfunctions of the SRS are difficult to confirm, the Diagnostic Trouble Codes (DTCs) become the most important source of information when troubleshooting. When troubleshooting the SRS, always check for DTCs before disconnecting the battery.
   2. Work must be started at least 90 seconds after the ignition switch is turned off and after the cable is disconnected from the negative (-) battery terminal.

      The SRS is equipped with a back-up power source. If work is started within 90 seconds after turning the ignition switch off and disconnecting the cable from the negative (-) battery terminal, the SRS may deploy.

      When the cable is disconnected from the negative (-) battery terminal, the clock and audio system memory will be erased. Before starting work, make a note of the settings of each memory system. When work is finished, reset the clock and audio system as before.

      WARNING:

      Never use a back-up power source (battery or other) to avoid erasing the system memory. The back-up power source may inadvertently power the SRS and cause it to deploy.

   3. If the vehicle has been involved in a minor collision where the SRS does not deploy, the steering pad, front passenger airbag assembly, front seat side airbag assembly, curtain shield airbag assembly and front seat outer belt assembly should be inspected before further use of the vehicle.
   4. Never use SRS parts from another vehicle. When replacing parts, use new parts.
   5. Before repairs, remove the airbag sensor assemblies if impacts are likely to be applied to the sensor during repairs.
   6. Never disassemble and attempt to repair any airbag sensor assemblies or airbag assemblies.
      1. Steering pad
      2. Front passenger airbag assembly
      3. Front seat side airbag assembly
      4. Curtain shield airbag assembly
      5. Front seat outer belt assembly
   7. Replace the airbag sensor assemblies and the airbag assemblies if: 1) damage has occurred from being dropped, or 2) cracks, dents or other defects in the case, bracket or connector are present.
   8. Do not directly expose the airbag sensor assemblies or airbag assemblies to hot air or flames.
   9. Use a voltmeter/ohmmeter with high impedance (minimum = 10 kΩ) for troubleshooting electrical circuits.
   10. Information labels are attached to the SRS components. Follow the instructions on the labels.
   11. After work on the SRS is completed, check the SRS warning light.
2. SPIRAL CABLE

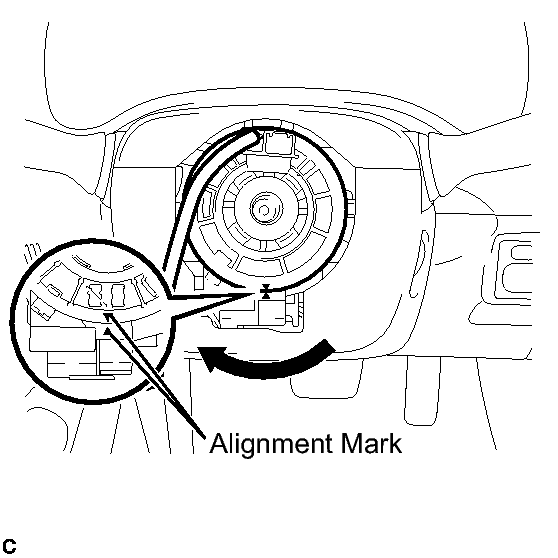

   Fig 8: Identifying Alignment Mark

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. The steering wheel must be fitted correctly to the steering column with the spiral cable at the neutral position, as otherwise cable disconnection and other problems may occur. Refer to the information about correct installation of the steering wheel. Refer to INSTALLATION .
3. STEERING PAD
   1. Always place a removed or new steering pad surface upward as shown in the illustration. Placing the steering pad with the pad surface facing down could cause a serious accident if the airbag deploys. Also, do not place anything on top of the steering pad.

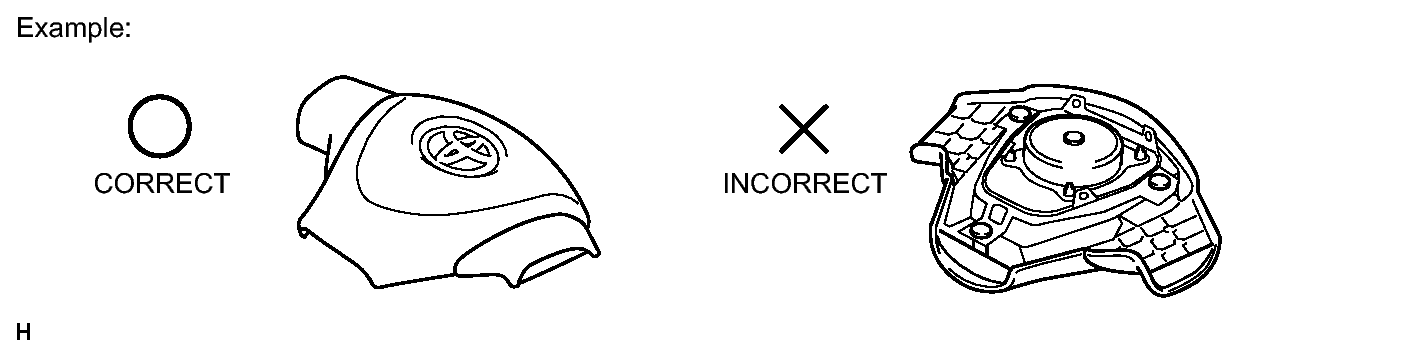

      Fig 9: Identifying Correct And Incorrect Methods For Placing Steering Pad

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Never measure the resistance of the airbag squib. This may cause the airbag to deploy, which could cause serious injury.

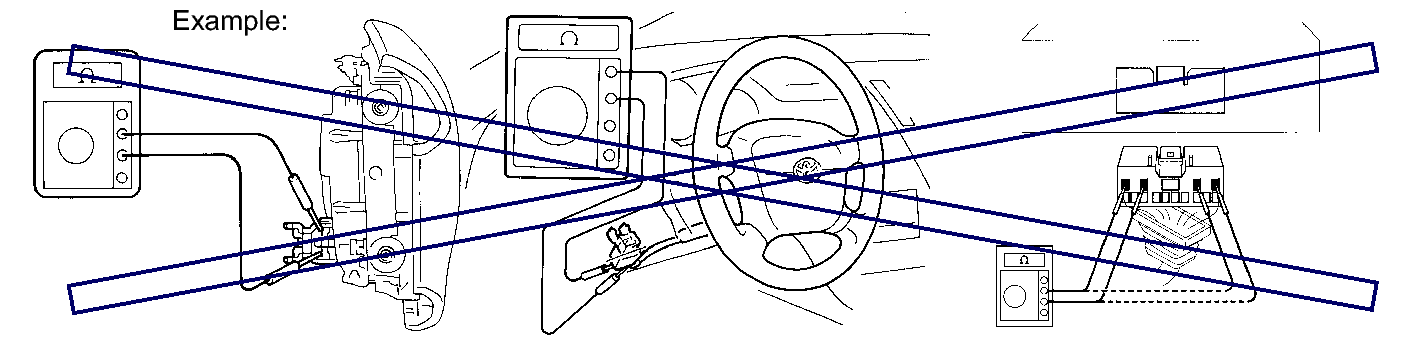

      Fig 10: Precaution For Measuring Resistance Of Airbag Squib

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Grease or detergents of any kind should not be applied to the steering pad.
   4. Store the steering pad in an area where the ambient temperature is below 93°C (200°F), the humidity is not high and there is no electrical noise.
   5. Before using an electric welder anywhere on the vehicle, disconnect the center airbag sensor assembly connectors. These connectors contain shorting springs. This feature reduces the possibility of the airbag deploying due to current entering the squib wiring.
   6. When disposing of the vehicle or the steering pad by itself, the airbag should be deployed using SST before disposal. Refer to DISPOSAL . Deploy the airbag in a safe place away from electrical noise.
4. FRONT PASSENGER AIRBAG ASSEMBLY
   1. Always place a removed or new front passenger airbag assembly with the pad surface facing upward as shown in the illustration. Placing the airbag assembly with the airbag deployment direction facing downward could cause a serious accident if the airbag deploys.
      Fig 11: Identifying Correct And Incorrect Methods For Placing Front Passenger Airbag Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Never measure the resistance of the airbag squib. This may cause the airbag to deploy, which could cause serious injury.

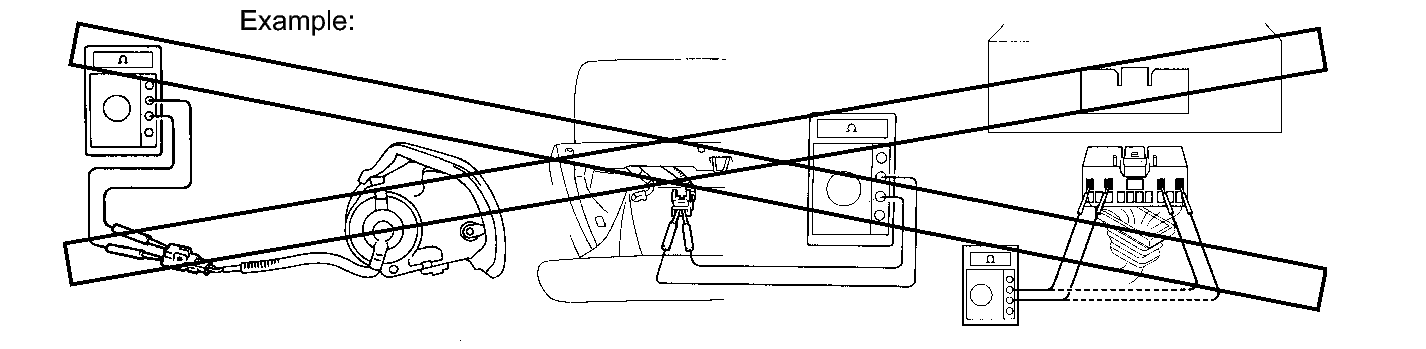

      Fig 12: Precaution For Measuring Resistance Of Airbag Squib

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Grease or detergents of any kind should not be applied to the front passenger airbag assembly.
   4. Store the airbag assembly in an area where the ambient temperature is below 93°C (200°F), the humidity is not high and there is no electrical noise.
   5. Before using an electric welder anywhere on the vehicle, disconnect the center airbag sensor assembly connectors. These connectors contain shorting springs. This feature reduces the possibility of the airbag deploying due to current entering the squib wiring.
   6. When disposing of the vehicle or the airbag assembly unit by itself, the airbag should be deployed using SST before disposal. Refer to DISPOSAL . Deploy the airbag in a safe place away from electrical noise.

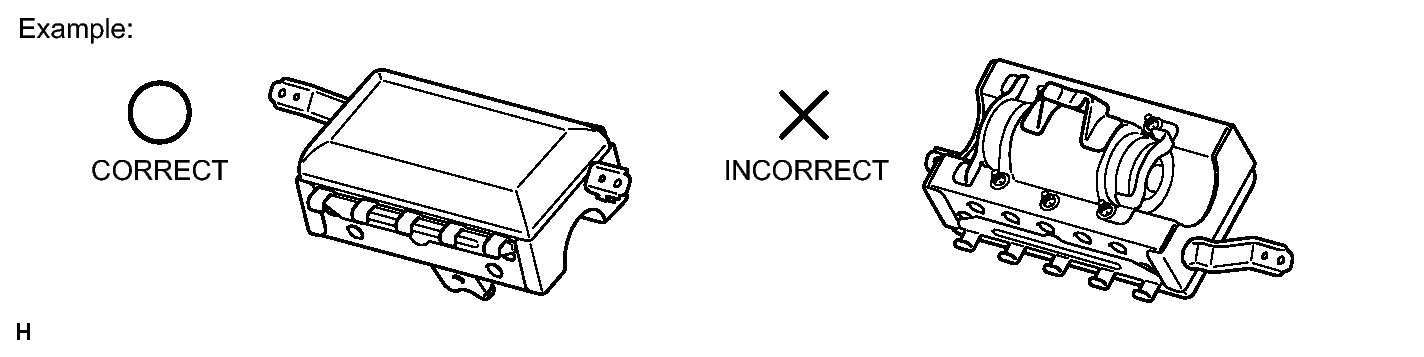

5. FRONT SEAT SIDE AIRBAG ASSEMBLY
   1. Always place a removed or new front seat side airbag assembly with the airbag deployment direction facing upward.
   2. Never measure the resistance of the airbag squib. This may cause the airbag to deploy, which could cause serious injury.

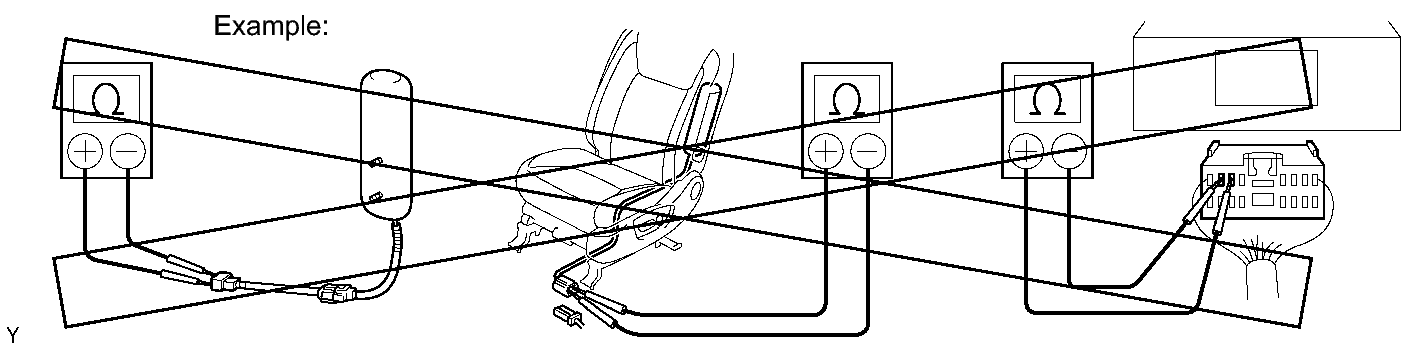

      Fig 13: Precaution Never Use An Ohmmeter On An Airbag

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Grease or detergents of any kind should not be applied to the front seat side airbag assembly.
   4. Store the airbag assembly in an area where the ambient temperature is below 93°C (200°F), the humidity is not high and there is no electrical noise.
   5. Before using an electric welder anywhere on the vehicle, disconnect the center airbag sensor assembly connectors. These connectors contain shorting springs. This feature reduces the possibility of the airbag deploying due to current entering the squib wiring.
   6. When disposing of a vehicle or the airbag assembly unit by itself, the airbag should be deployed using SST before disposal. Refer to DISPOSAL . Deploy the airbag in a safe place away from electrical noise.

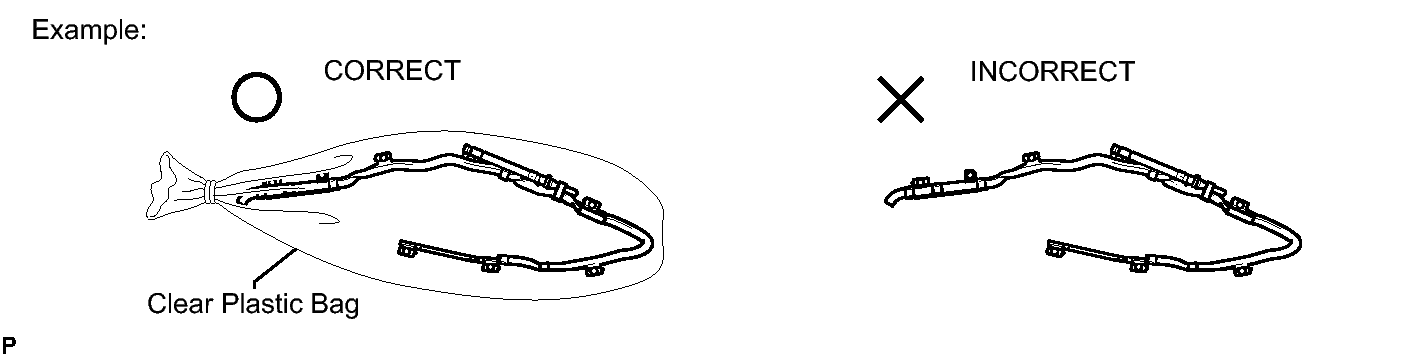

6. CURTAIN SHIELD AIRBAG ASSEMBLY
   1. Always place a removed or new curtain shield airbag assembly in a clear plastic bag, and keep it in a safe place.
      Fig 14: Identifying Correct And Incorrect Curtain Shield Airbag Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
