2010 Toyota Matrix Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Power Windows Do Not Operate At All: Procedure

  1. CHECK HARNESS AND CONNECTOR (POWER WINDOW POWER SOURCE)
    1. Disconnect the power window master switch connector.

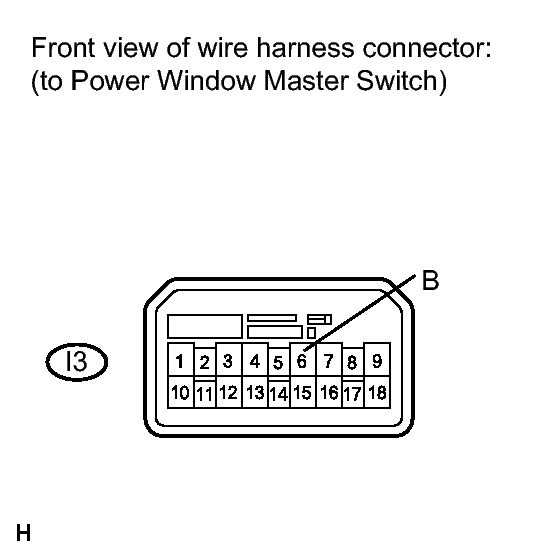

      Fig 1: Identifying I3 Power Window Master Switch Connector
      GTY170846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      I3-6 (B) - Body ground Ignition switch ON 11 to 14 V

    NG → See step   4

    OK: Go to next step

  2. CHECK HARNESS AND CONNECTOR (POWER WINDOW MASTER SWITCH - BODY GROUND)
    1. Measure the resistance according to the value(s) in the table below.

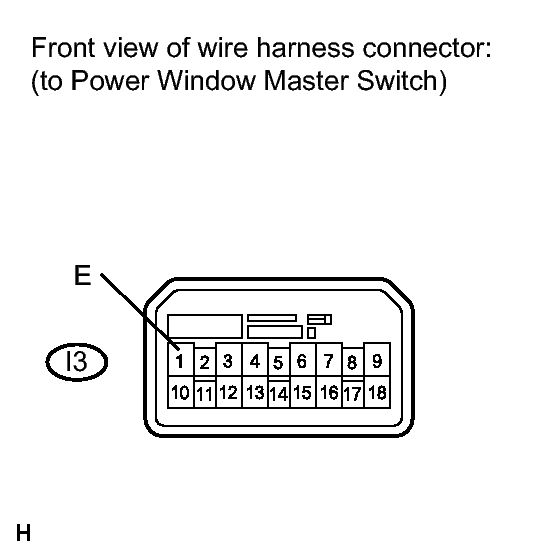

      Fig 2: Identifying I3 Power Window Master Switch Connector Terminal
      GTY200188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      I3-1 (E)- Body ground Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   3

  3. REPLACE POWER WINDOW MASTER SWITCH. Refer to  REMOVAL
  4. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - BODY GROUND)
    1. Disconnect the instrument panel junction block connector.

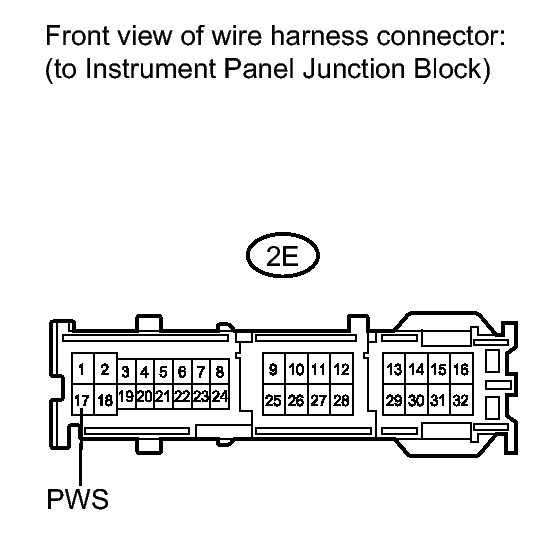

      Fig 3: Identifying 2E Instrument Panel Junction Block Connector Terminal
      GTY200286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      2E-17 (PWS) - Body ground Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → REPLACE MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK)
